Die Cut Electrical Insulation Material Vulcanized Paper Eelectrical Insulation Vulcanized Fibre Paper

Place of Origin Jiangsu, China
Brand Name YUFFEN
Model Number FP Series
Type Insulation Paper
Material Other
Application High Voltage
Rated Voltage 6kV
Color Green
Usage Electrical Insulation Protection
Feature Excellent Electrical Insulation
Thickness 0.1-0.5mm
Width 8mm-1020mm
Certification ROHS,HF
Temperature Resistance 130 Degrees
Availability:
Quantity:
Inquire Add to Basket

  • F-1

  • YUFFEN

Brand
YUFFEN
Model
FP Series
Material
Composite Polymer
Usage
Electrical Insulation Protection
Voltage
Up to 6KV
Temperature Resistence
130℃
Color
Red
Tensile Strength
Excellent
Thickness
0.1-0.5mm
Width
8-1020mm

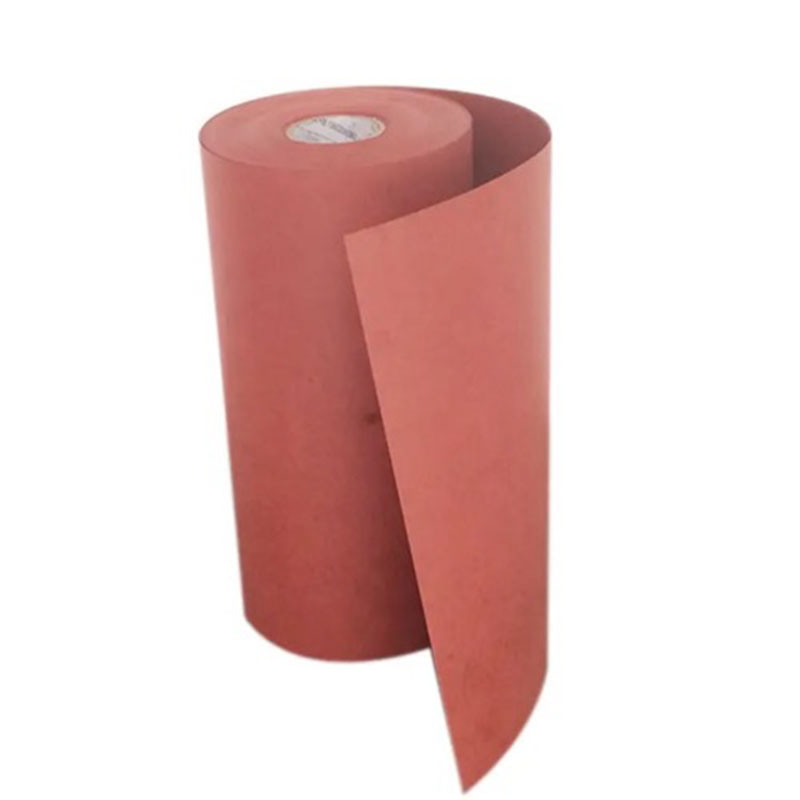

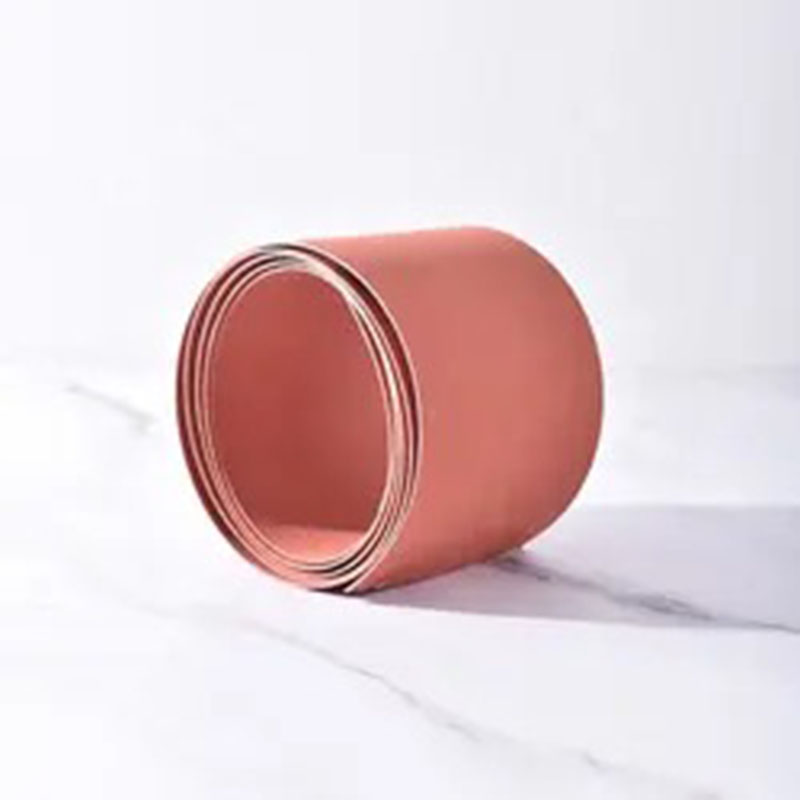

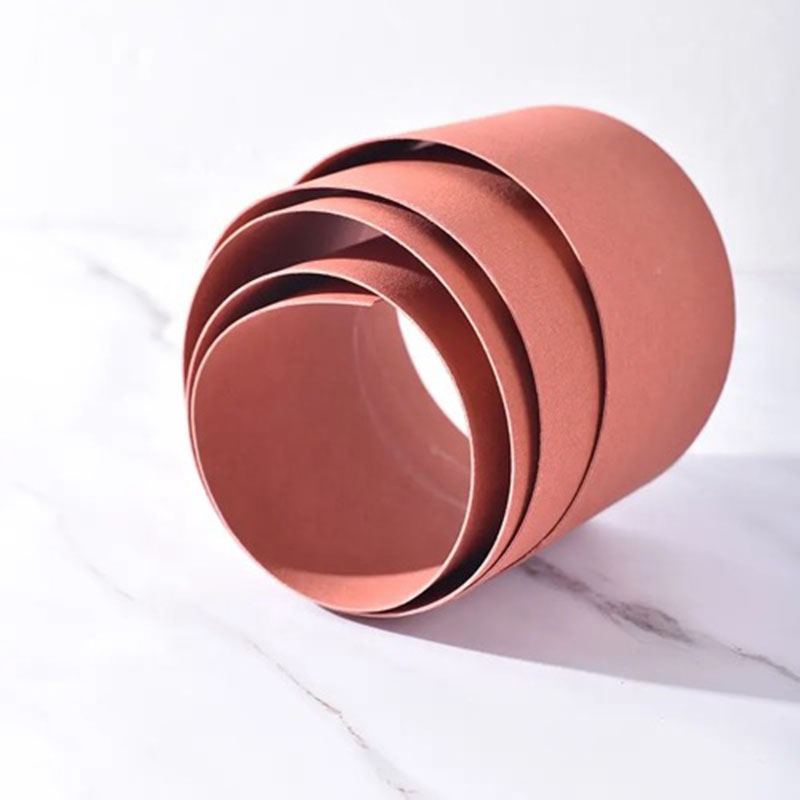

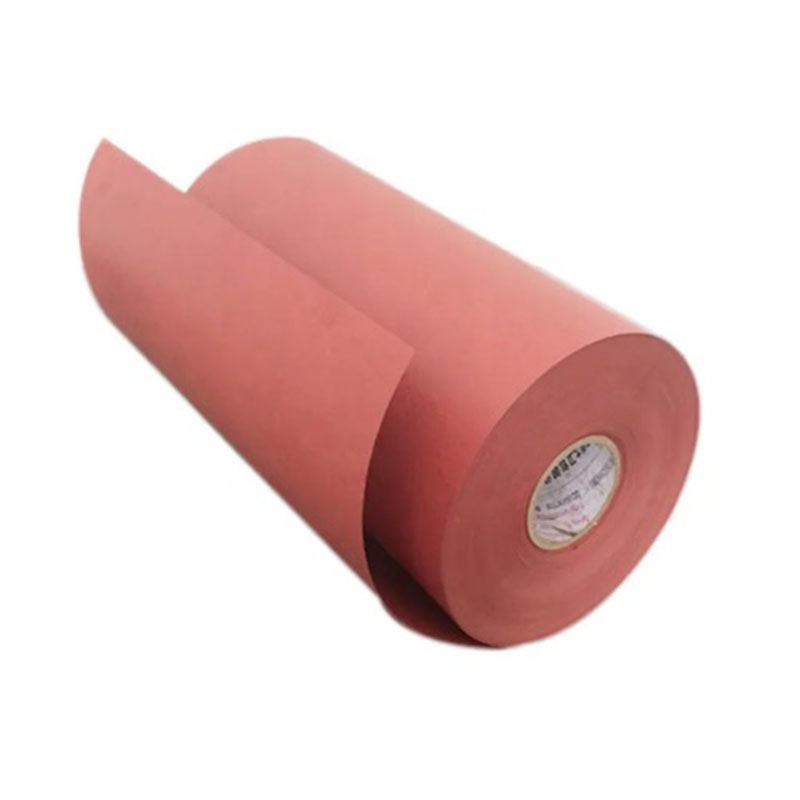

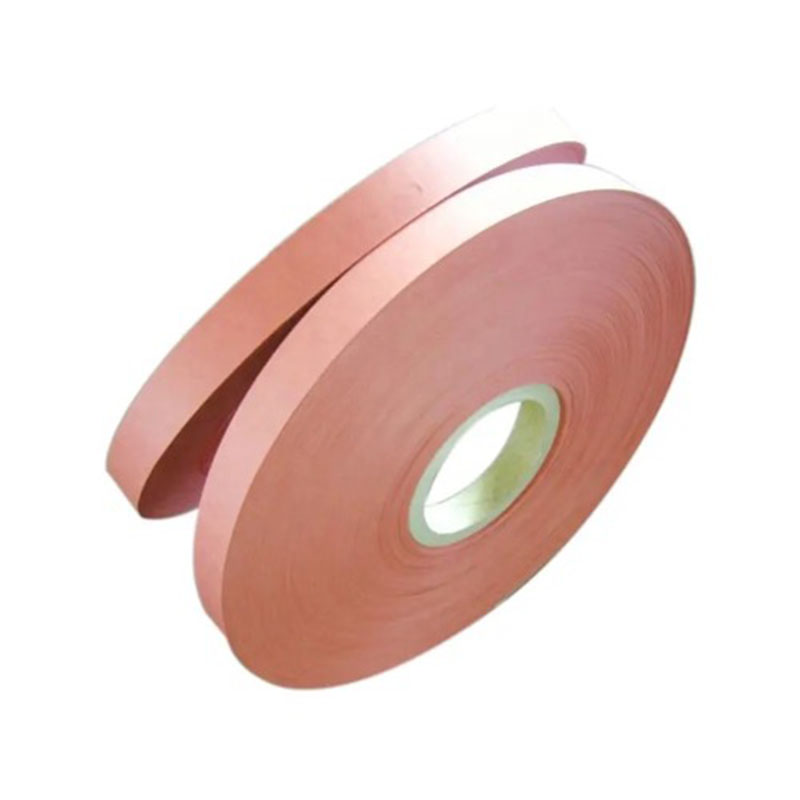

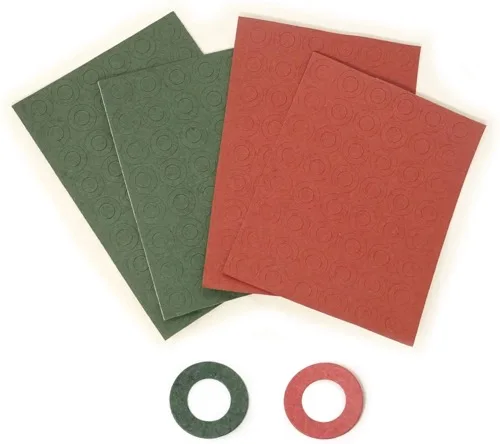

Red steel paper gasket combines the good insulation properties of wood pulp insulating paper and the good dielectric, mechanical toughness, flexibility and resilience of polyester film, and has better thermal stability. Widely applicable to electrical equipment, suitable for slot-to-slot insulation, turn-to-turn insulation and liner insulation of Class B motors.

Red steel paper gasket insulation material is a kind of soft composite material, which is a two-layer insulating paper made of polyester film coated with adhesive and wood pulp insulating paper on one side.


Features of red steel paper gasket insulating paper
The red steel paper gasket insulation material has the function of insulation and anti-interference, high electrical insulation,mechanical strength, softness and elasticity; the red fast paper is especially resistant to acid and alkali corrosion, tear resistance and wear resistance. Moisture insensitive, non-toxic and flame-resistant.

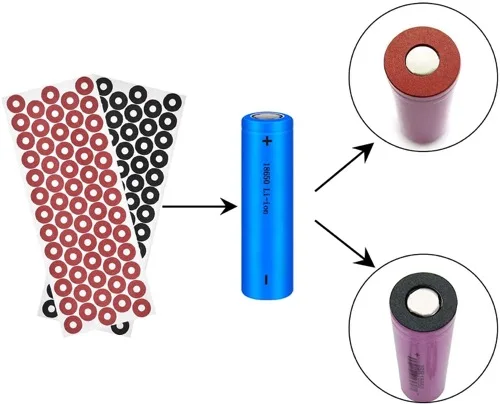

Applications With the various powerful features, Fish paper is commonly used on electronic components, batteries, Motors, Transformers, audio equipment, printing equipment, automotive components etc, to functioned as insulation and sealing purpose.

With the various powerful features, Fish paper is commonly used on electronic components, batteries, Motors, Transformers, audio equipment, printing equipment, automotive components etc, to functioned as insulation and sealing purpose.
