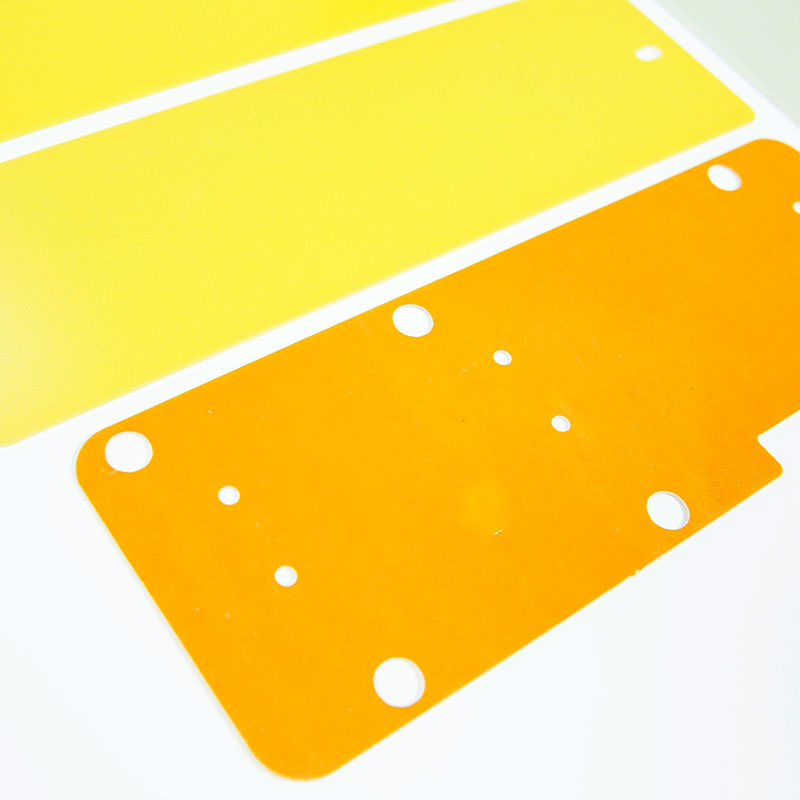

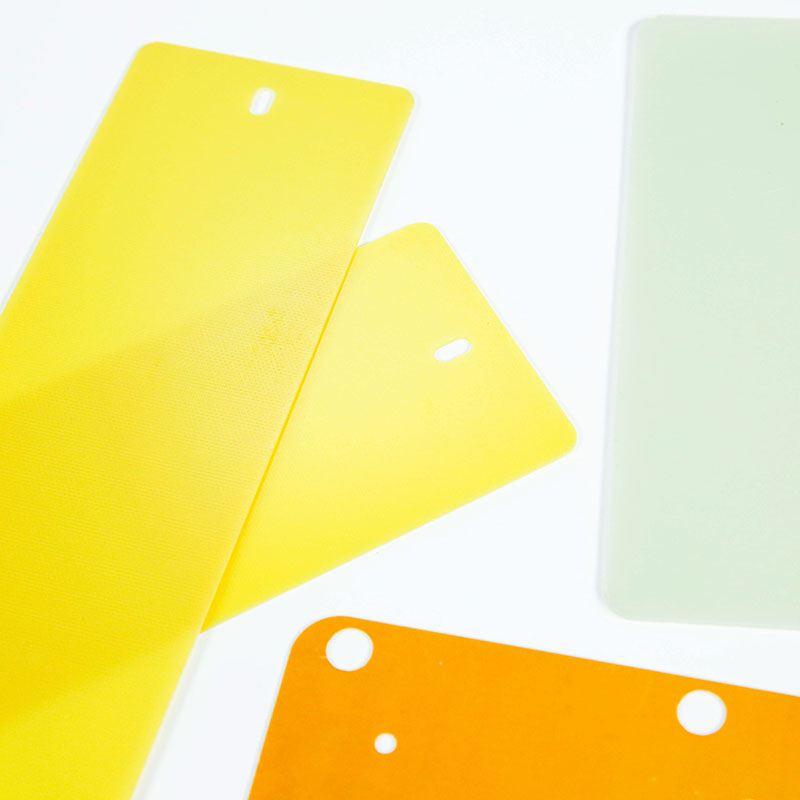

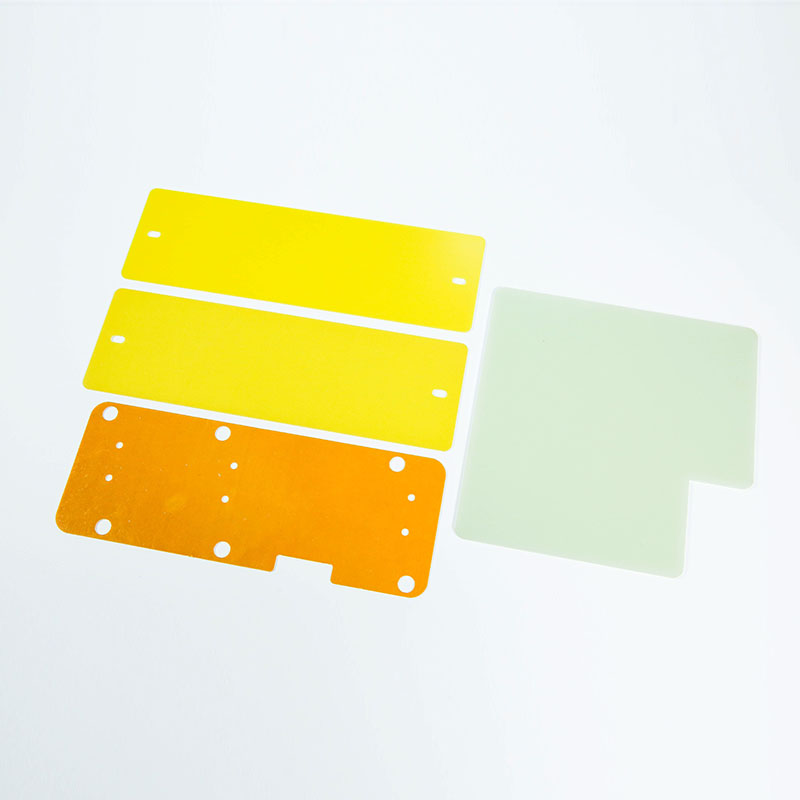

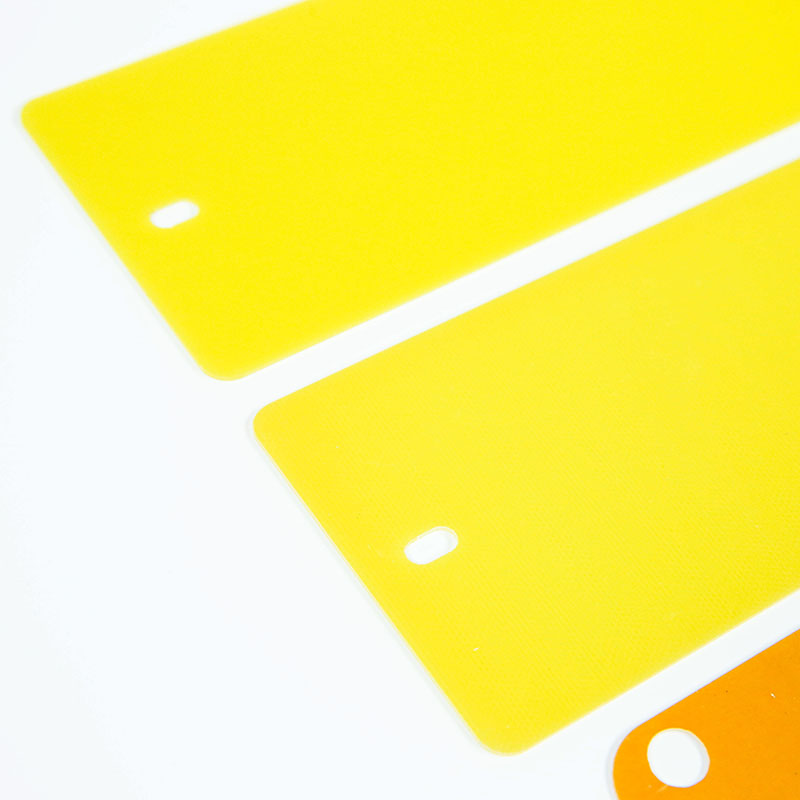

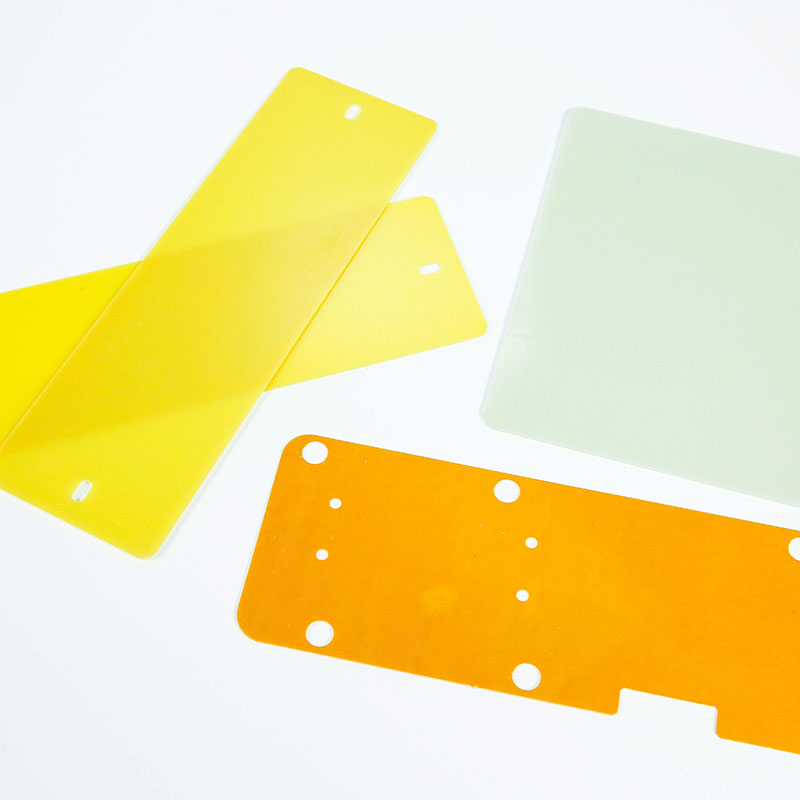

Electrical Insulation Materials G10 sheet FR4 fiberglass epoxy board

Product name FR4 fiberglass epoxy board G10 sheet
Type Insulation Sheet
Color Light green/ Black
Characteristics Mechanical Protect
Density 1.9-2.2 g/cm3
Feature High temperature
Material epoxy resin,filler and fiberglass
Sample Avaialble
Keywords fiberglass epoxy
Payment T/T, West Union, Paypal, Cash
Availability:
Quantity:
Inquire Add to Basket

  • YUFFEN

FR-4 is not a material's name, but a kind of grade of fire-resistant, which represents resin materials can self-extinguish when firing. Now there are all kinds of FR4 materials using as PCB, but the majorities are composite made of epoxy resin, filler and fiberglass. It mainly used as insulation structure parts in electrical, electronic and other industries.

Name
FR4/G10/G11 epoxy glass fiber laminate sheet
Size
1020*1220mm,1020*2040mm,1220*2040mm,1220*2440mm
Thickness
0.2mm-100mm
Color
Light green,yellow,black
Density
2.06 g/cm3
Component
Epoxy resin + Glass fiber cloth



Item
Unit
Index value
Vertical bending strength
MPa
≥340
Parallel impact strength
(simply-supported beam method)
KJ/
≥33
Parallel impact strength
(cantilever beam method)
KJ/
≥34
Vertical electric strength
(in oil of 90℃±2℃,1mm)
MV/m
≥14.2
Parallel breakdown voltage
(in oil of 90℃±2℃)
kV
≥35
Dielectric constant
(below 48Hz-62Hz)
-
≤5.5
Dielectric constant
(below 1MHz)
-
≤5.5
Thermostability
℃
150
Oil resistivity in transformer oil 4h
℃
130
Tensile strength lengthways horizontal
MPa
≥314
Adhesive strength
N
≥5600
Dielectric dissipation factor
(below 48Hz-62Hz )
-
≤0.04
Dielectric dissipation factor
(below 1MHz )
-
≤0.04
Density
g/ cm3
(1.8-2)

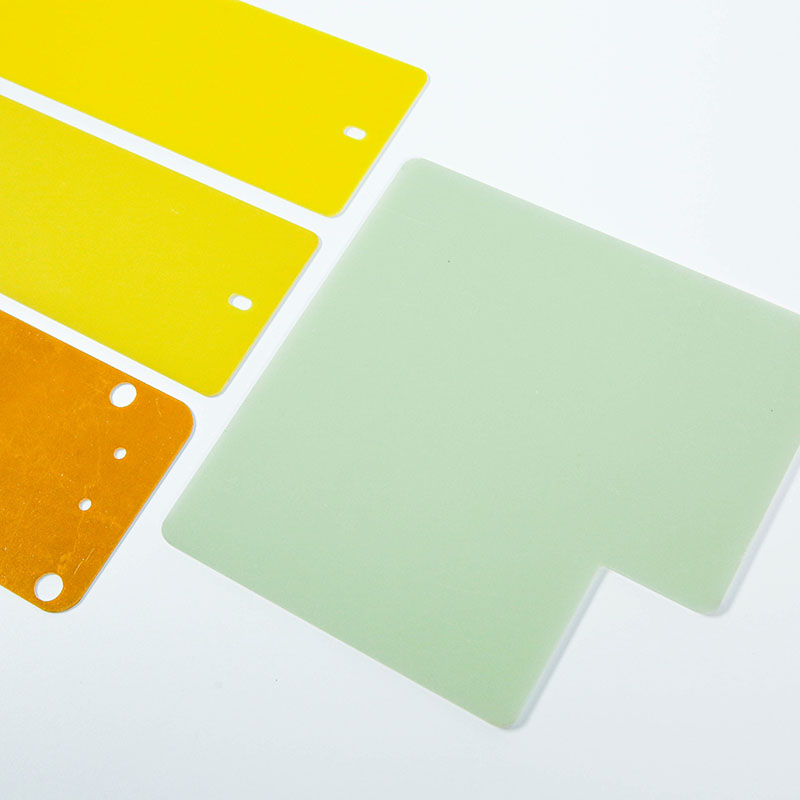

7W6A0668

Applications:

Used in mechanical, electrical and electronic insulation structure parts.
Used in Chemical machine parts.
Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.
