YUFFEN

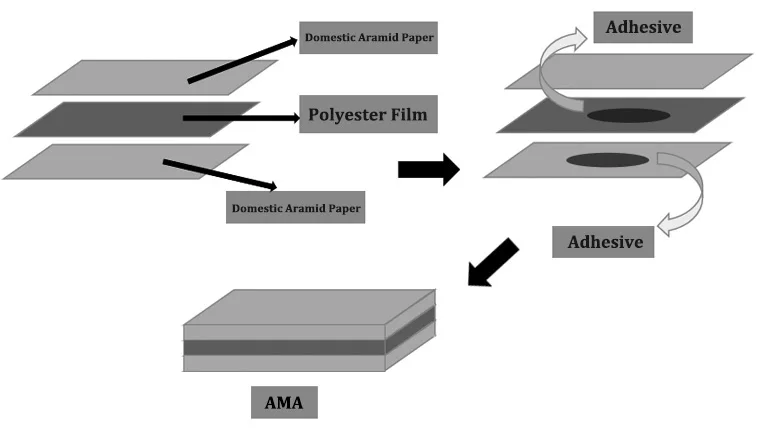

| Item | Nominal Thickness | Tolerance | Nominal Grammage | PET Film Thickness | Tensile Strength Not Bended | BDV Not Bended | |
| Aramid/ Polyester | mm | ±% | g/m2 | um | M | TD≥ | KV≥ |
| N/10 | N/10mm | ||||||
| 2-1-2 | 0.13 | 15 | 140±16 | 25 | 100 | 80 | 6 |
| 2-1.5-2 | 0.15 | 15 | 150±18 | 36 | 150 | 90 | 7 |
| 2-2-2 | 0.17 | 15 | 170±20 | 50 | 160 | 90 | 8 |
| 2-3-2 | 0.19 | 15 | 200±24 | 75 | 170 | 105 | 11 |
| 2-4-2 | 0.22 | 15 | 230±27 | 100 | 190 | 120 | 12 |
| 2-5-2 | 0.24 | 15 | 270±32 | 125 | 220 | 150 | 14 |
| 2-7.5-2 | 0.31 | 15 | 360±43 | 190 | 270 | 300 | 19 |
| 2-14-2 | 0.47 | 10 | 590±70 | 350 | 400 | 350 | 28 |
Features:
1. Excellent tensile strength and elongation rate, extremely electrical insulation reliability regardless of stretching, die-cutting and wrapping.
2. The breakdown voltage up to 21KV/mm, at the same time, able to provide higher overload protection for electrical products.
3. Excellent chemical medium compatibility and stability in severe environment.
4. Excellent heat and aging resistance, maintain good electrical and mechanical properties at 210 degrees high temperature environment.
5. Good maintainability, able to effectively reduce equipment operation and maintenance costs.
6. Excellent surface evenness through the control of special technique.
7. Compact structure with no pinhole, low density and smaller fluctuation deviation.
