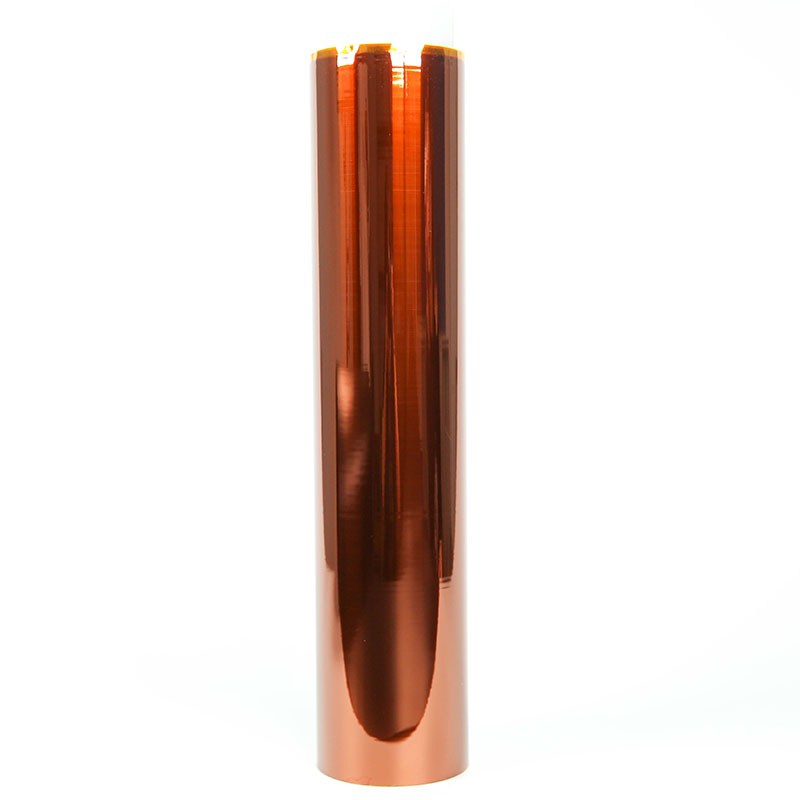

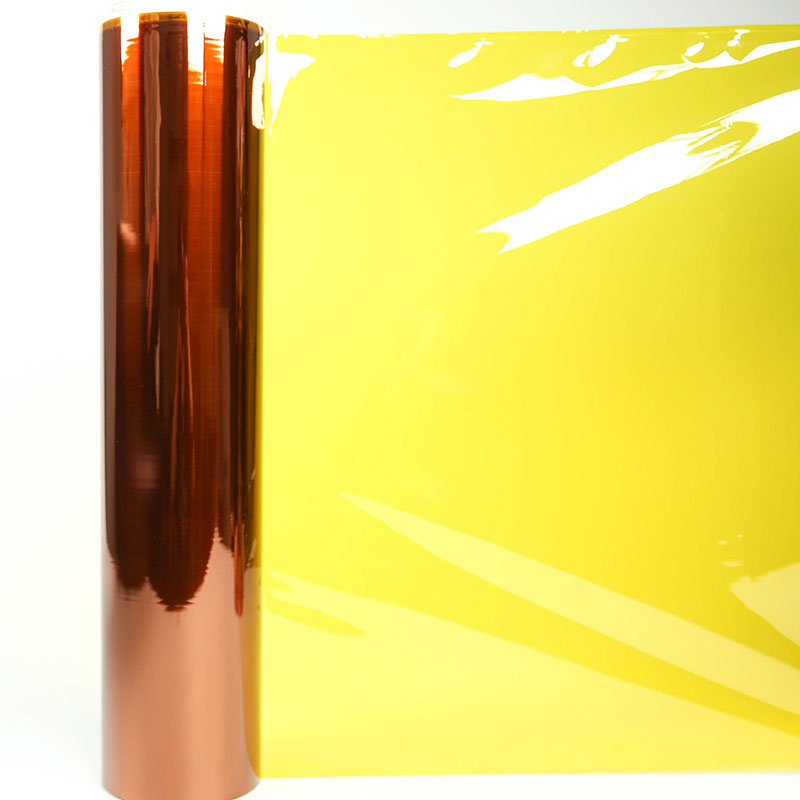

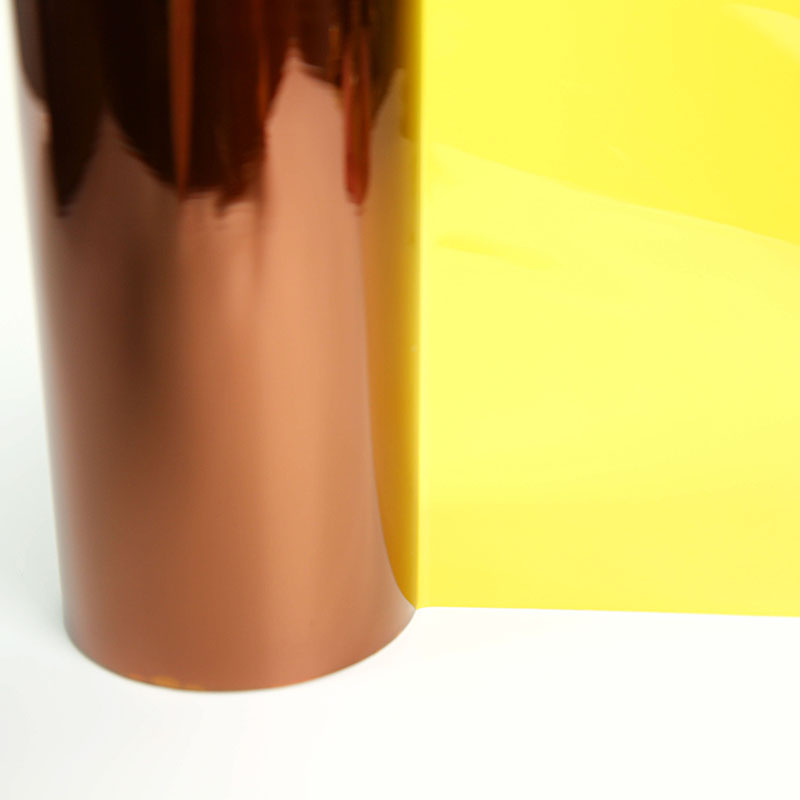

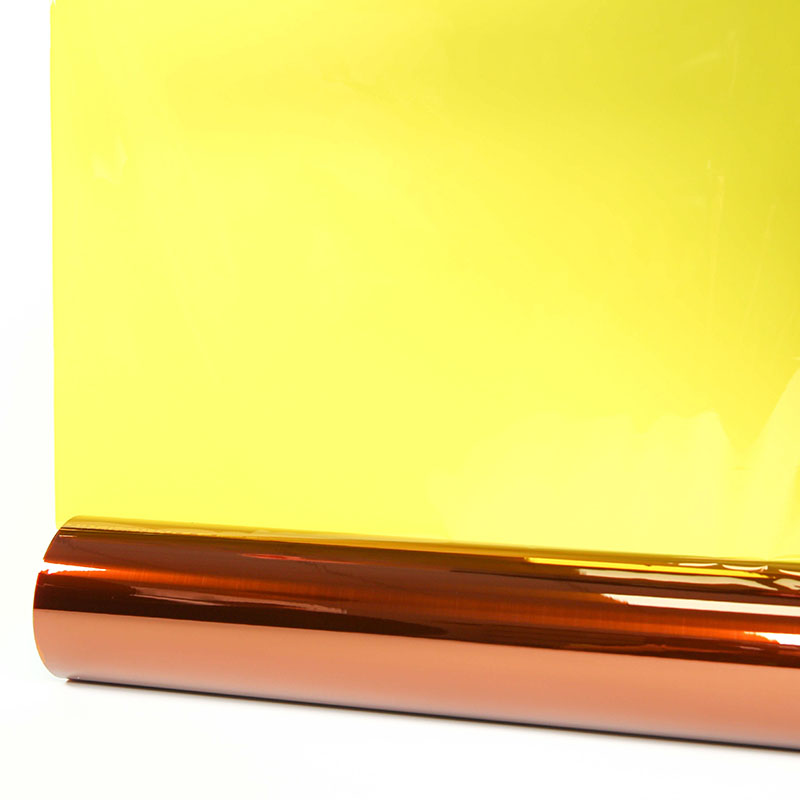

Global Original Sources Insulation Kaptons Polyimide Film Prices Kaptons Film Wholesale Polyimide Film

Polyimide films provide excellent electrical, thermal, physical and chemical properties over a wide temperature range, making them superior for electrical insulation applications.
Availability:
Quantity:
Inquire Add to Basket

  • YUFFEN

Features

* Ideal for high temperature applications up to 350℃* Exceeds UL 94 V-0 flammability

*  High dimensional and tensile strength to break through cured paint
* Excellent thermal, chemical and abrasion resistance * High dielectric strength

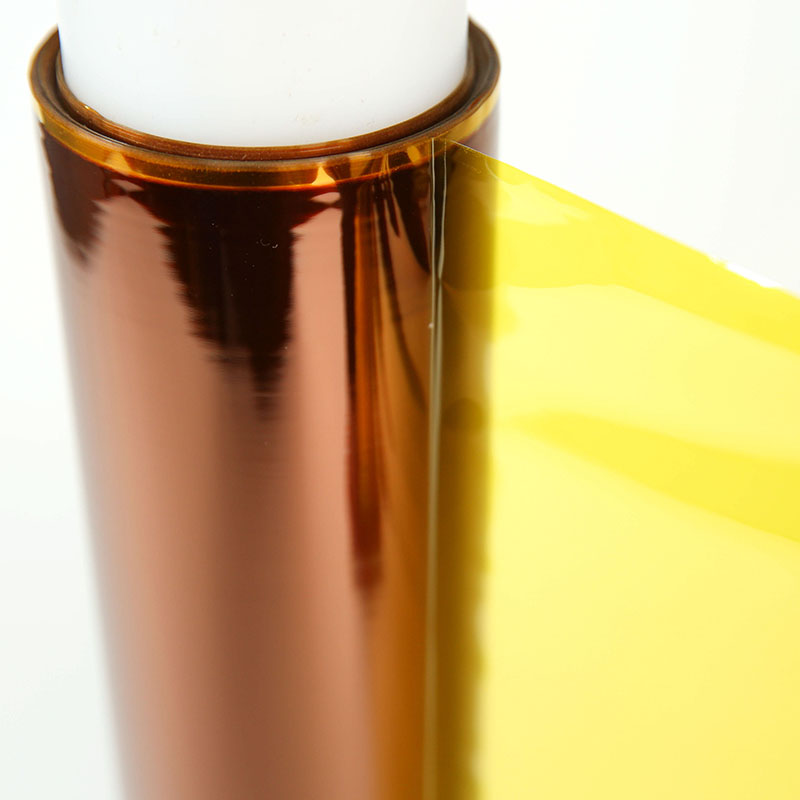

7W6A0857

Recommended Application:
● Insulation blankets
● Wire and cable
● Process belting and casting

● Protection of Printed Circuit Boards during wave soldering

● Insulation on Transformers, Motors and Coils

● PCB, SMT masking protection in electronics

● Fiber Optics Cable

● Semiconductor Manufacturing

● Automotive reversing radar and sensors                              ● Used for fixing the lithium battery’s positive and negative pole in high grade electric appliance.                                      ● Solar Panels.

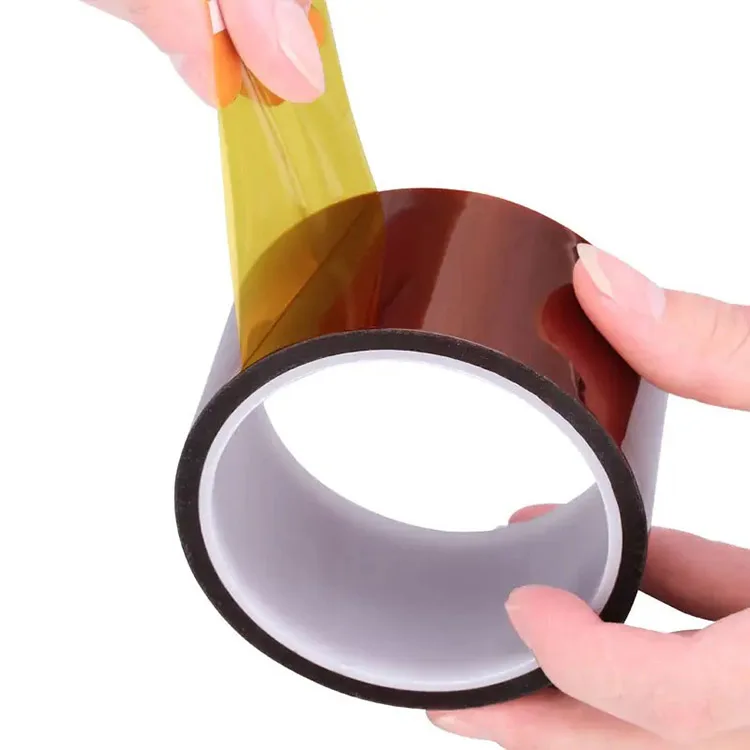

Silicone Polyimide Adhesive Tape for Powder Coating Masking is made of polyimide film,coated with high temperature resistant silicone adhesive. Silicone Polyimide Adhesive Tape for Powder Coating Masking is designed for high temperature masking,such as protection of golden finger of printed circuit board,High grade electrical insulation application.


Features

1. Thin and flexible for uneven surfaces.

2. Can stand heat up to 260C.

3. Remove clearly without adhesive residue after high temperature exposure.

4. High temperature silicone adhesive.

5. High strength polyimide film which is puncture and tear resistance.

6. Chemical resistant.

Place of Origin
JiangSu China
Brand Name
YUFFEN
Adhesive Side
Single Sided
Adhesive Type
Hot Melt
Design Printing
No printing
Material
Polyimide film+ Silicone Adhesive
Feature
Heat-Resistant
Breakdown Voltage
55KV
Short-term temperature
300℃
Color
Gold/Black/Amber
Tensile Strength
115N/25MM
Width
As per your request
Thickness
0.03mm,0.04mm,0.05mm,0.06mm,0.08mm

We supply various size of tape for sublimation to meet you different uses. At the same time, we also provide die-cutting polyimide tape. If you are interested in buying our thermal heat resistance tape, please just tell us your specific size, so we can soon offer the qotations!
