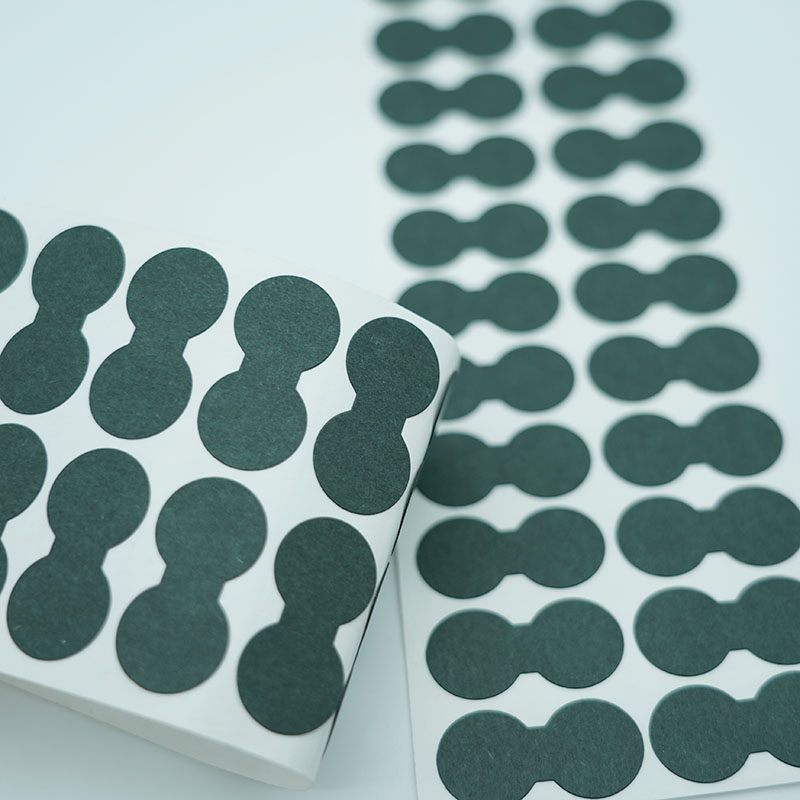

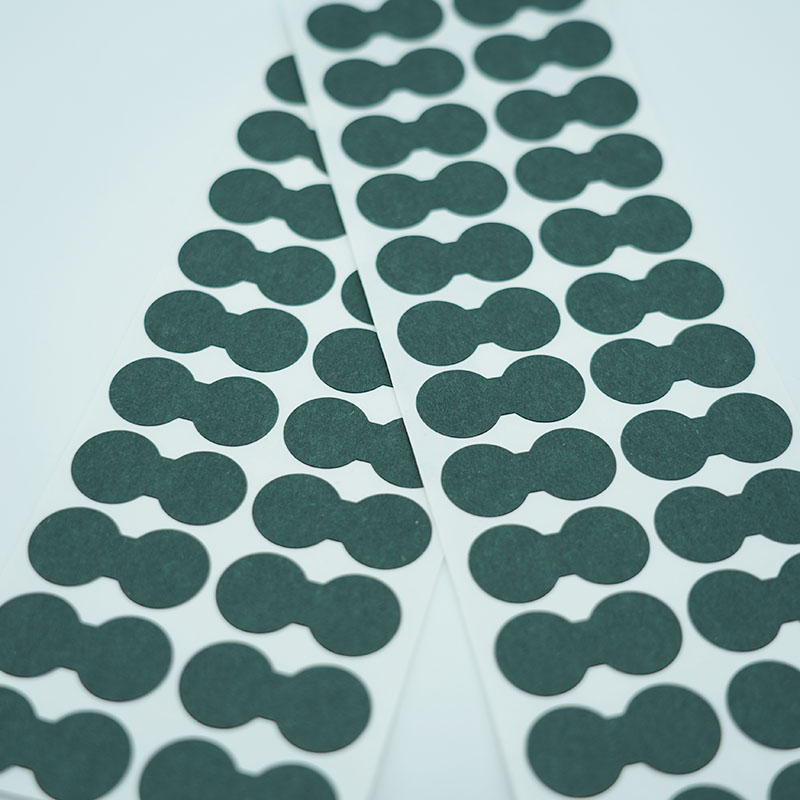

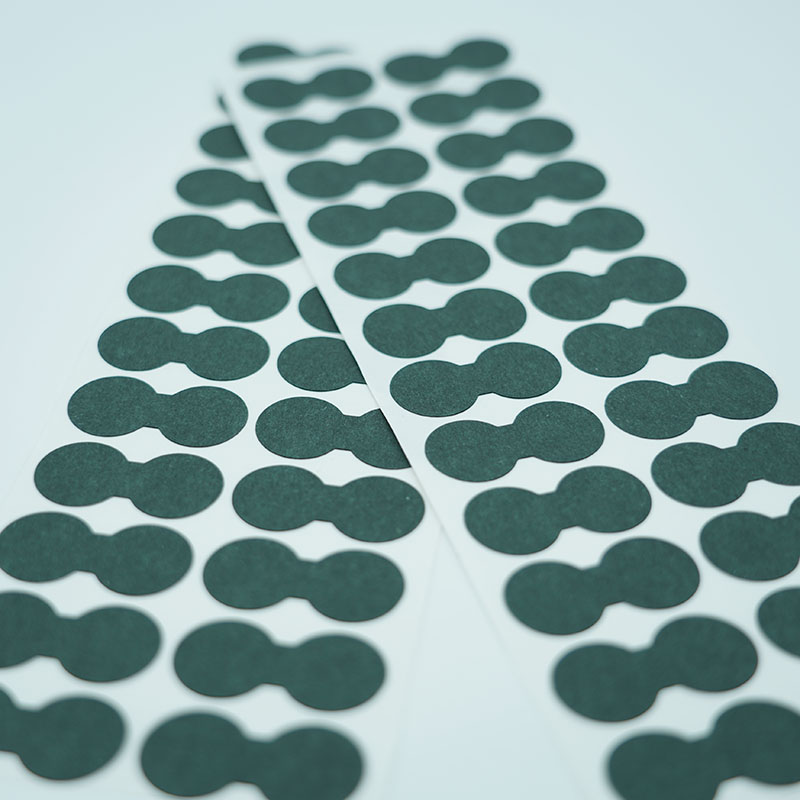

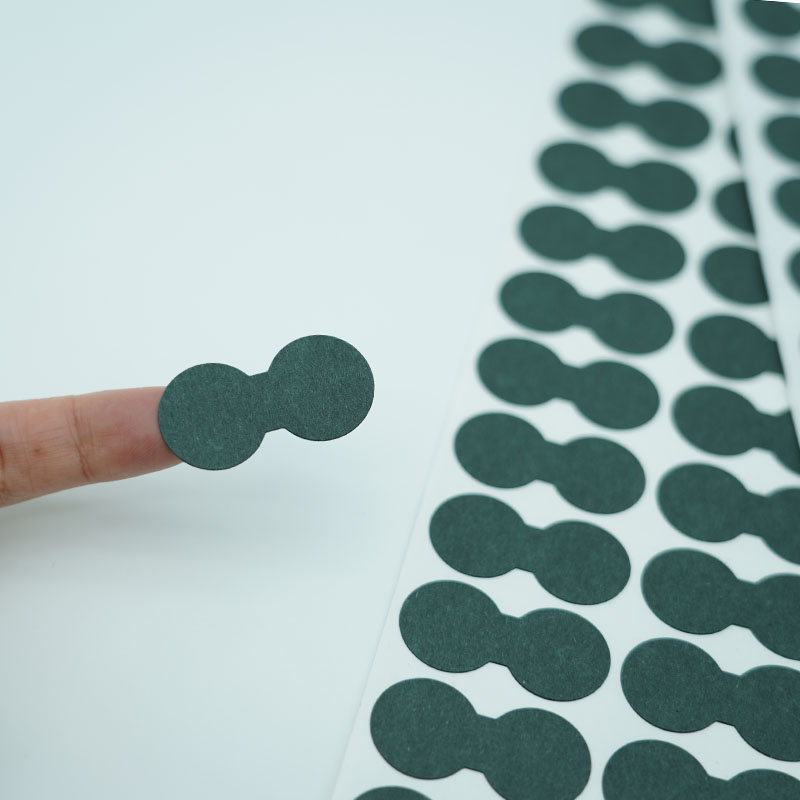

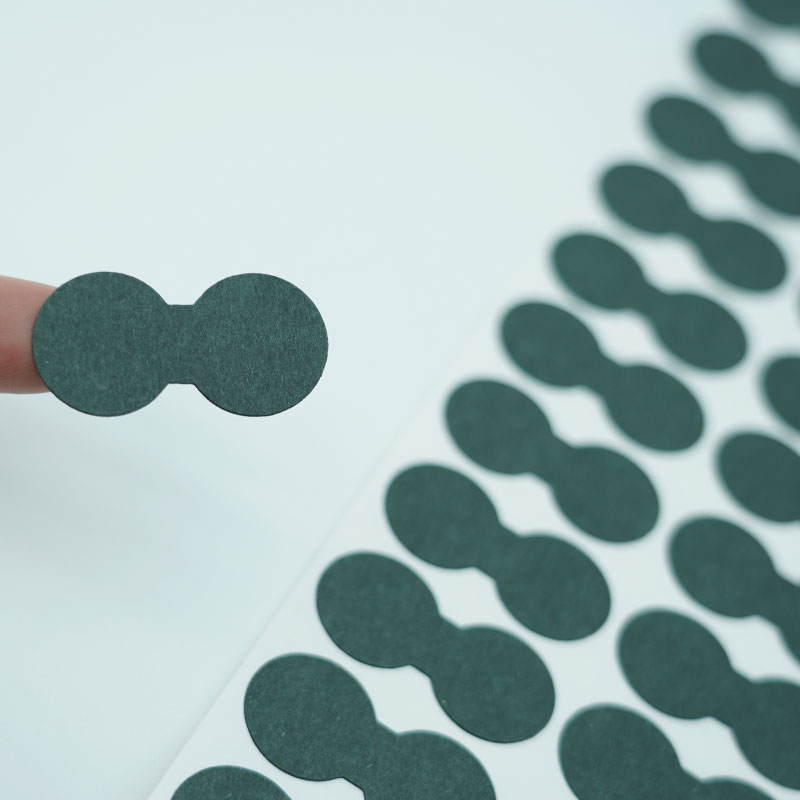

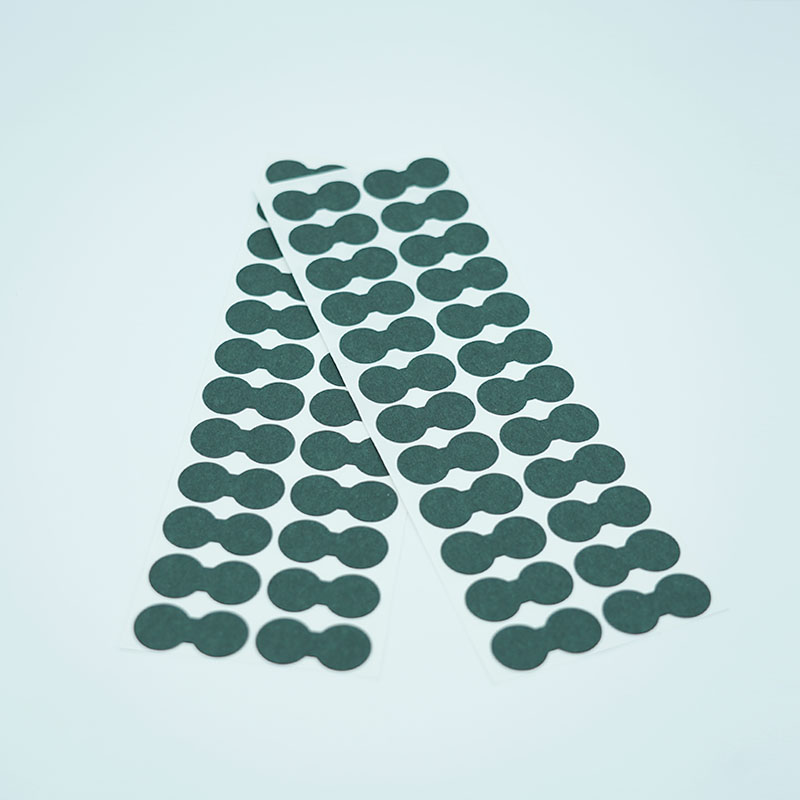

Highland Barley Paper 18650 26650 21700 Battery Pack Insulation Paper

Electrical insulation polyester film flexible composite presspaper highland barley paper insulation paper 6520 fish paper is wrapped by proctective film;
Electrical insulation polyester film flexible composite presspaper highland barley paper insulation paper 6520 fish paper is packed by standard import & export cartons or.iron pallets.

Availability:

Quantity:



Inquire Add to Basket

Model:
F-1
Brand:
YUFFEN

Product Description

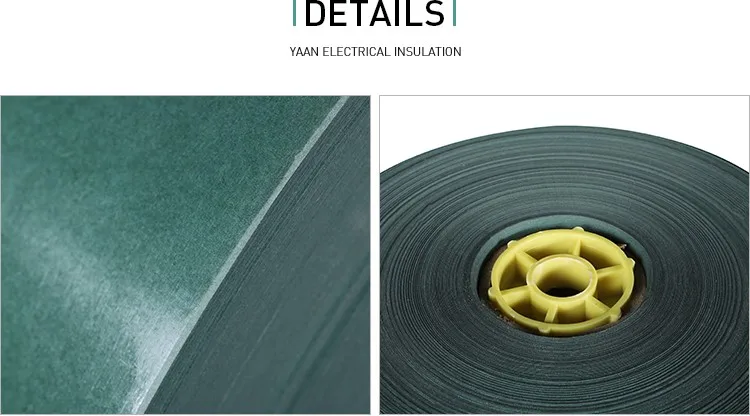

Fish paper is a durable, flexible, electrical insulator that’s made of vulcanized fiber and used with motor windings and for gasket insulation. A lightweight dielectric paper, this electrical grade material is also a good choice for oil-filled transformers. Moisture absorption can cause fish paper to swell or curl.

Properties	Units	Values
Nominal thickness	mm	0.15	0.18	0.20	0.23	0.25	0.30	0.35
Thickness tolerance	mm	±0.02	±0.03	±0.03	±0.03	±0.03	±0.03	±0.04
Grammage and tolerance	g/m2	140±20	190±28	220±33	260±39	300±45	350±52	425±63
Film Nominal Thickness	mm	0.050	0.075	0.10	0.125	0.15	0.19	0.25

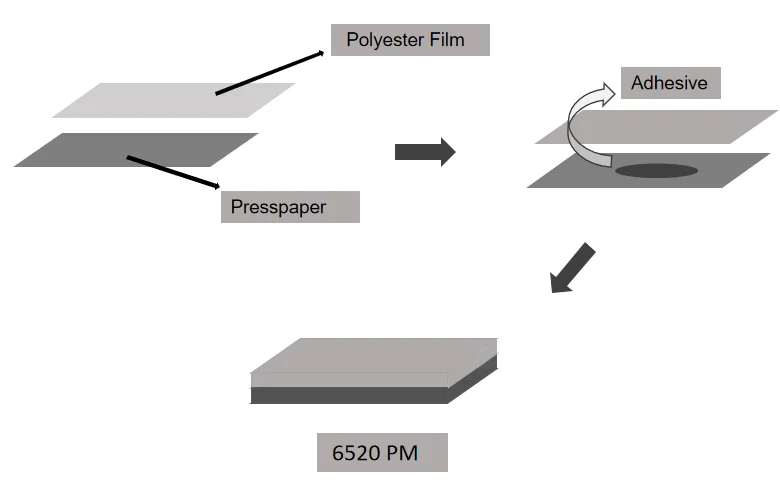

-6520/6521 insulation fish paper is laminated by
insulation paper and polyester film.
-The fish paper thickness can be customized.
- Insulation class E (120°C)
- High mechanical strength and excellent dielectric property.
- As slot, interturn and liner insulation for
E-grade motors and electric appliances

Advantage

0utstanding dielectric properties

Fish paper electrical insulation has good mechanical strength because it’s fibrous

This hard, wear-resistant cellulosic paper is more heat-resistant than many plastic materials

Retains greater flexibility than plastics at low temperatures
