YUFFEN
Product Name | Custom Kaptons Tape Precut Heat Resistant High Temperature Kaptons Die Cut Polyimide PI Tape With Silicone Adhesive |
Based Material | Polyimide Film |
Adhesive | Silicone Adhesive |
Liner | Without liner |
Adhesive Side | Single Sided or Double Sided |
Thickness | 0.05mm, 0.06mm, 0.08mm, Customized |
Peel Strength | ≥ 5.0 N/25mm |
Tensile Strength | ≥ 115 N/25mm |
Insulation Strength | 150-200 MV/m |
Elongation Break | ＞50% |
Lowest Temperature | -70 ℃ |
Heat Resistance | Short term 300℃, Long term 260℃ |
Feature | High temperature resistance, good insulation performance, Surface protection without adhesive residue, Anti-static, Long and great durability, easy to clean removal. |
Usage | Masking circuit boards, soldering ,electrical insulation and splicing wires，FPC soldering, PCB high temperature painting shielding, insulation for motor coil and capacitor. |
Packing | Packed by shrink film and bubble film, and then laod into a stable carton, customized packaging. |
Product Name | Custom Kaptons Tape Precut Heat Resistant High Temperature Kaptons Die Cut Polyimide PI Tape With Silicone Adhesive |
Based Material | Polyimide Film |
Adhesive | Silicone Adhesive |
Liner | Without liner |
Adhesive Side | Single Sided or Double Sided |
Thickness | 0.05mm, 0.06mm, 0.08mm, Customized |
Peel Strength | ≥ 5.0 N/25mm |
Tensile Strength | ≥ 115 N/25mm |
Insulation Strength | 150-200 MV/m |
Elongation Break | ＞50% |
Lowest Temperature | -70 ℃ |
Heat Resistance | Short term 300℃, Long term 260℃ |
Feature | High temperature resistance, good insulation performance, Surface protection without adhesive residue, Anti-static, Long and great durability, easy to clean removal. |
Usage | Masking circuit boards, soldering ,electrical insulation and splicing wires，FPC soldering, PCB high temperature painting shielding, insulation for motor coil and capacitor. |
Packing | Packed by shrink film and bubble film, and then laod into a stable carton, customized packaging. |

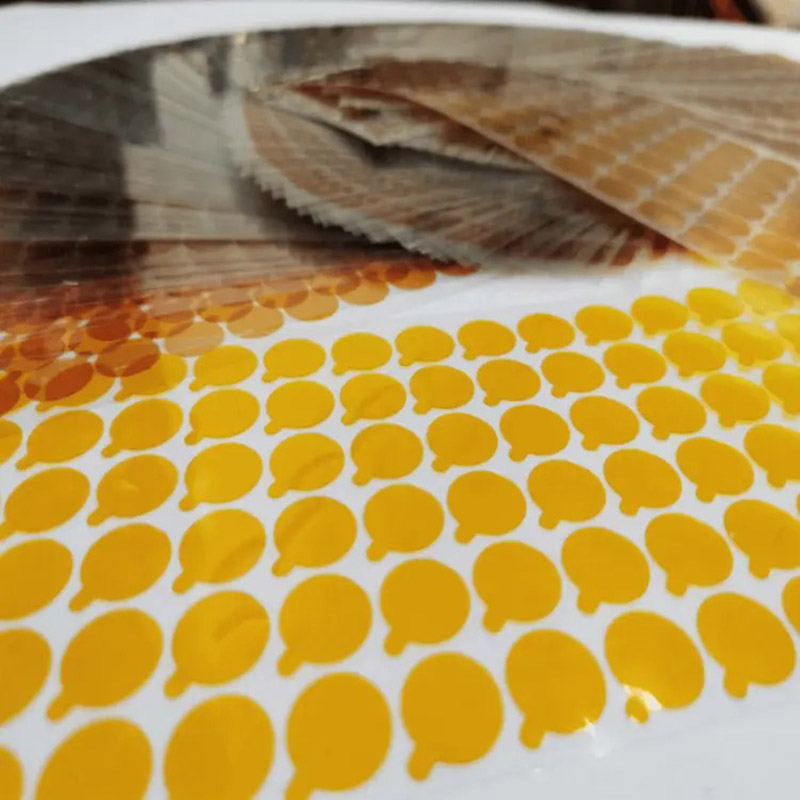

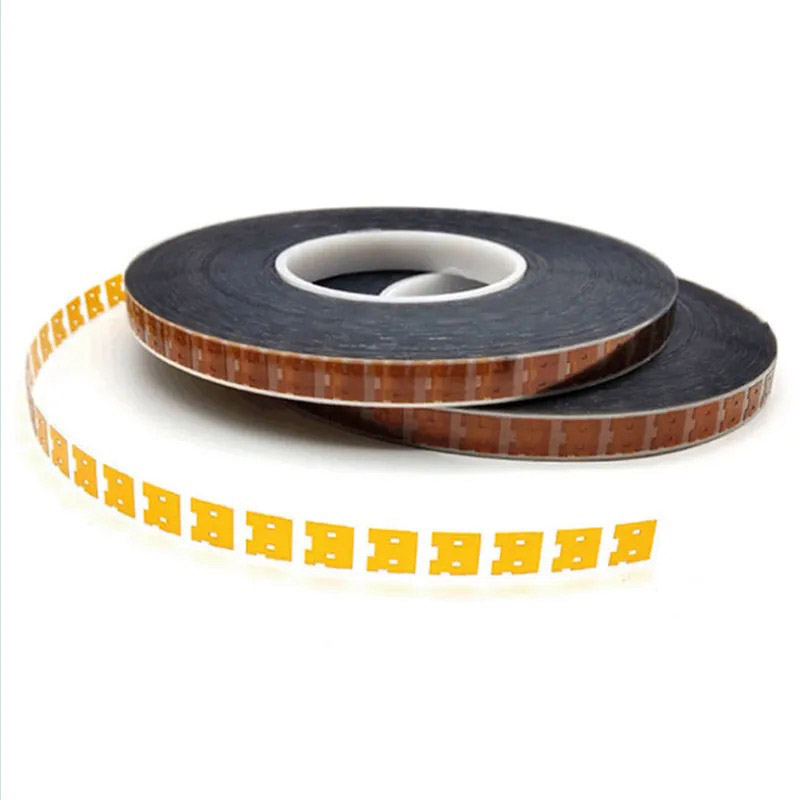

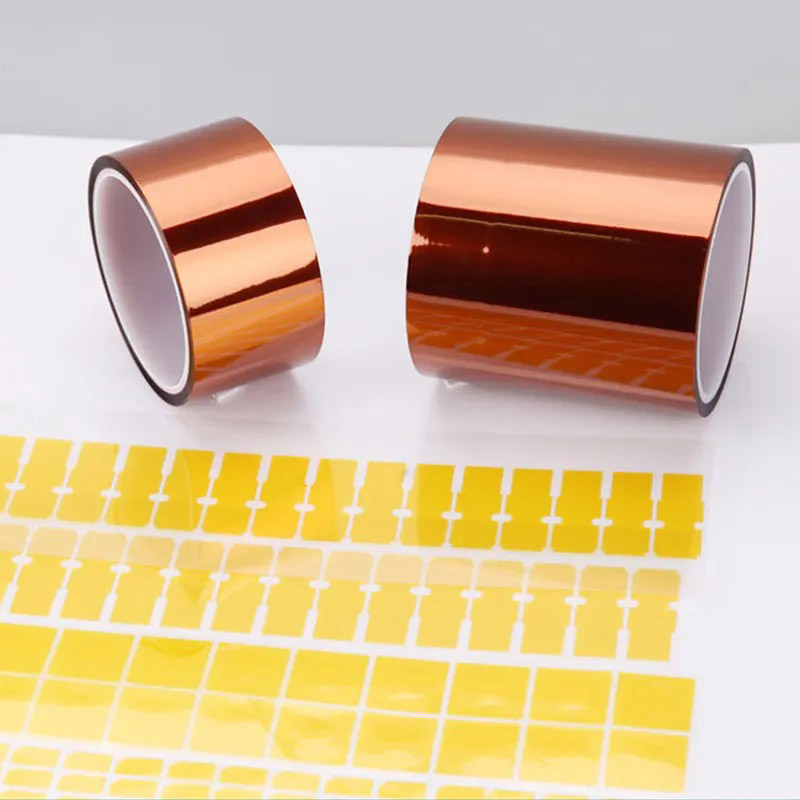

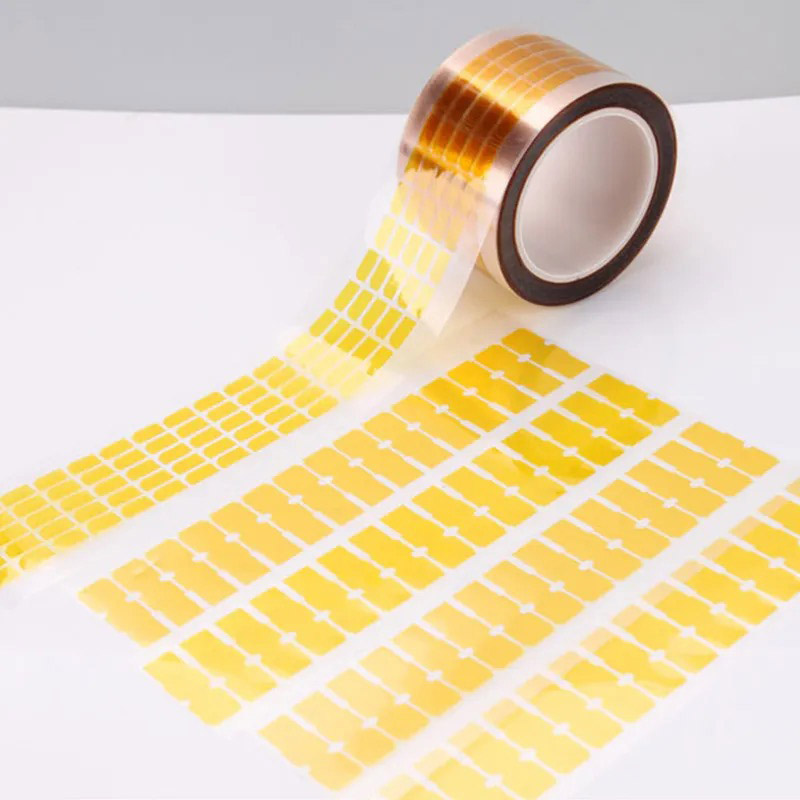

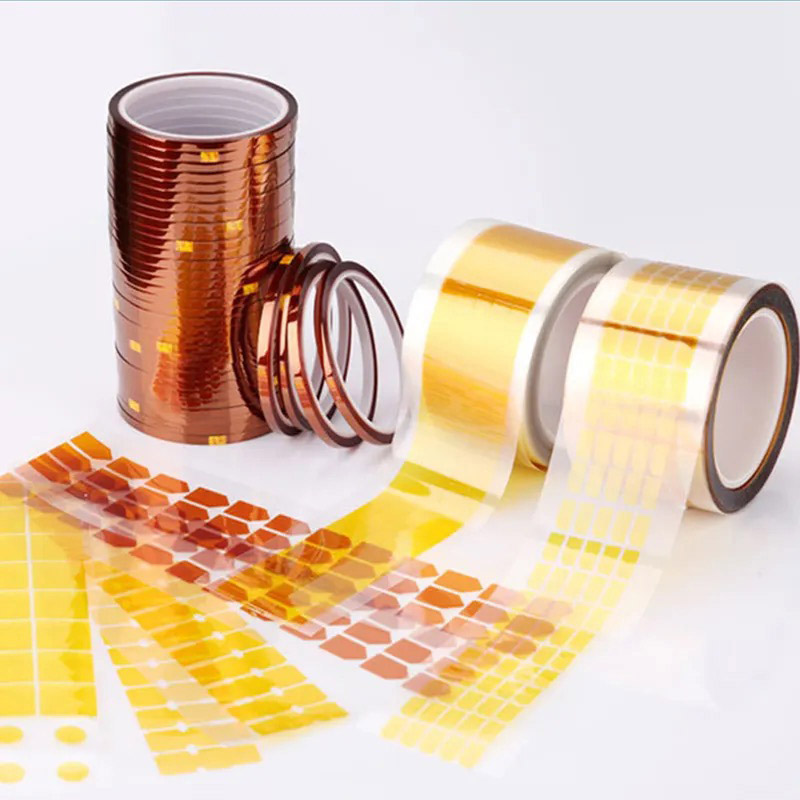

Custom Kaptons Tape Precut Heat Resistant High Temperature Kaptons Die Cut Polyimide PI Tape With Silicone Adhesive is made of soft polyimide film base, single sided or double sided coated with high temperature resistant silicone adhesive (No residual glue）.It can resistance 280 degrees.
