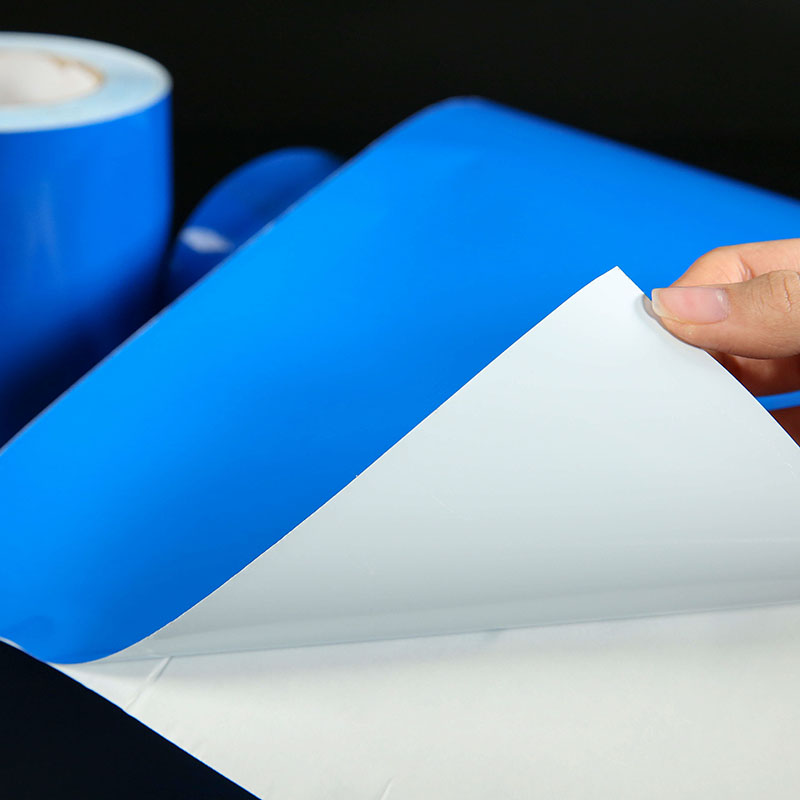

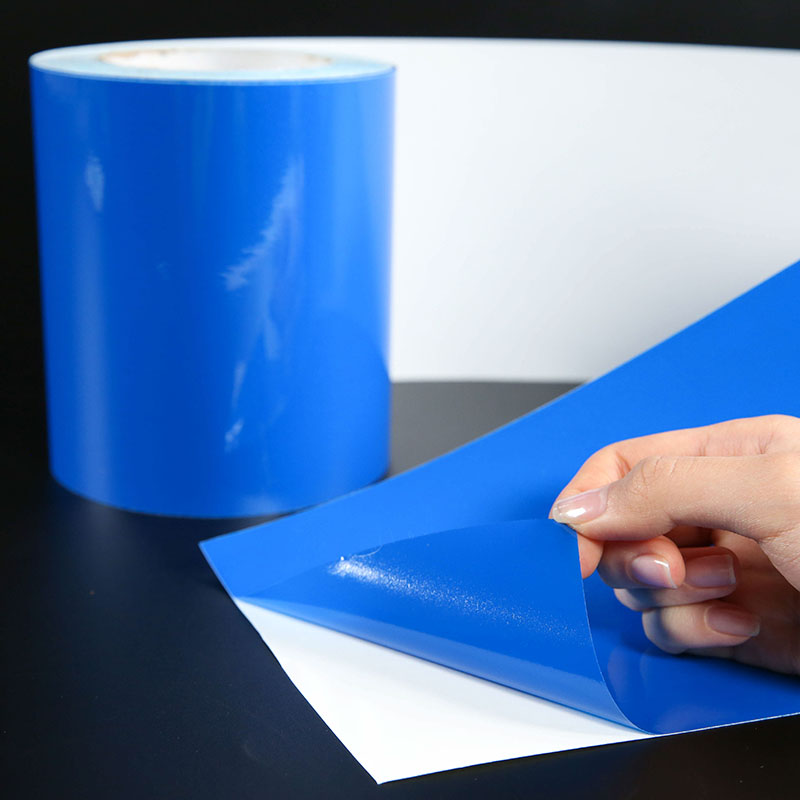

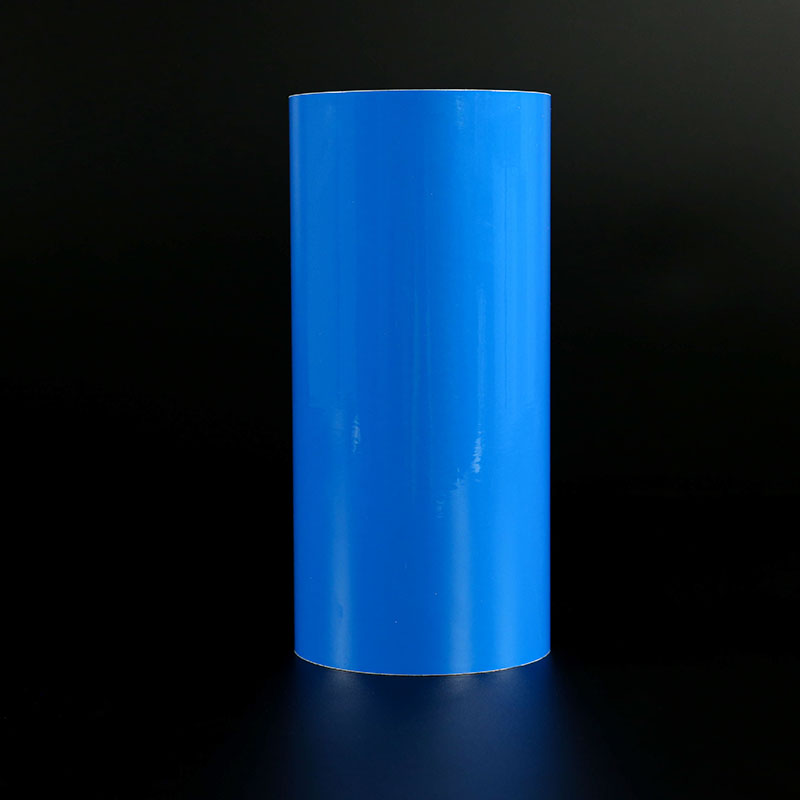

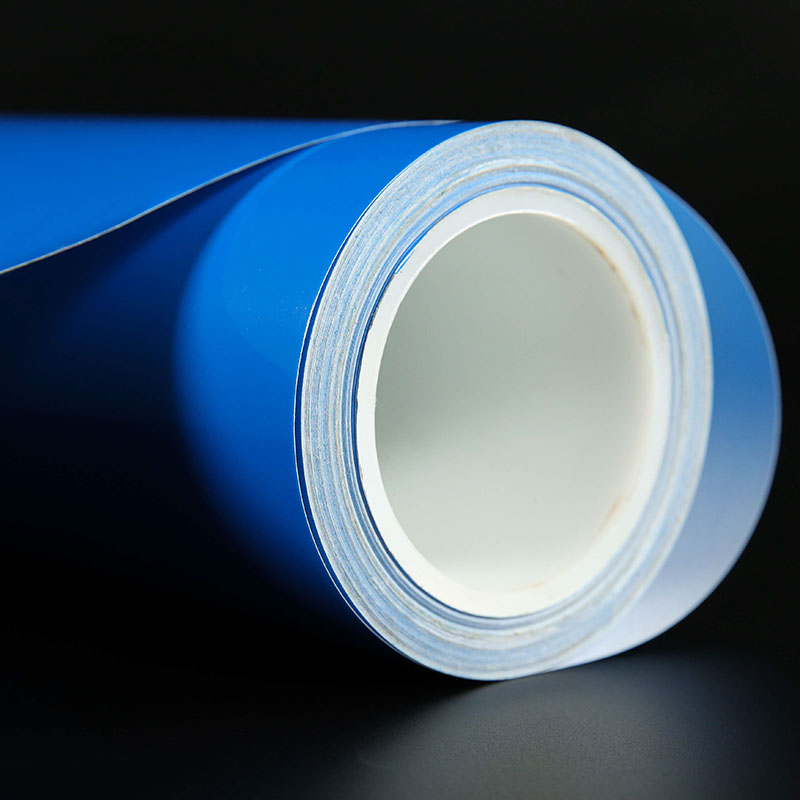

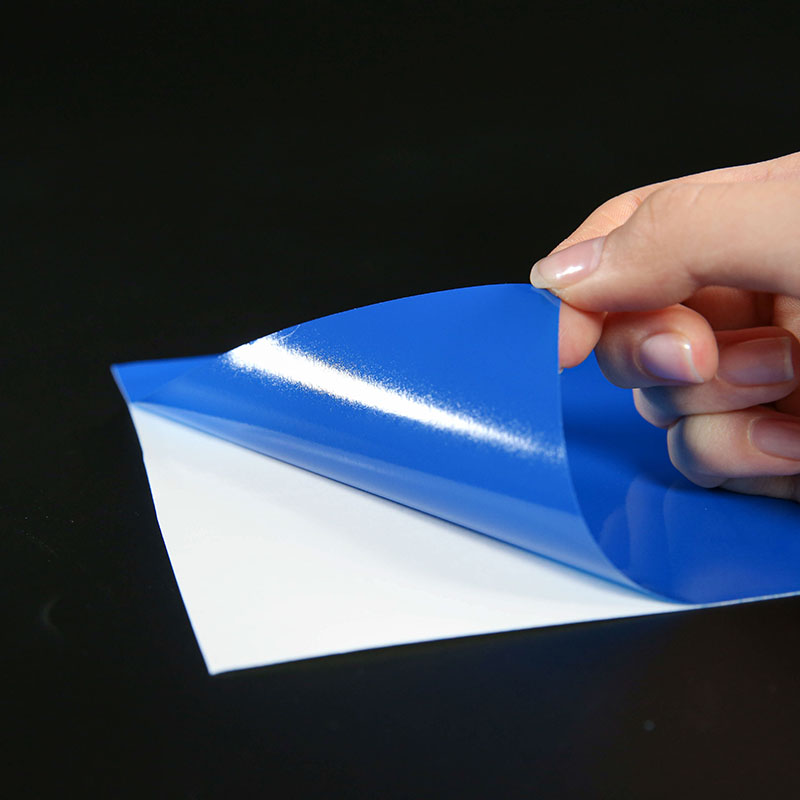

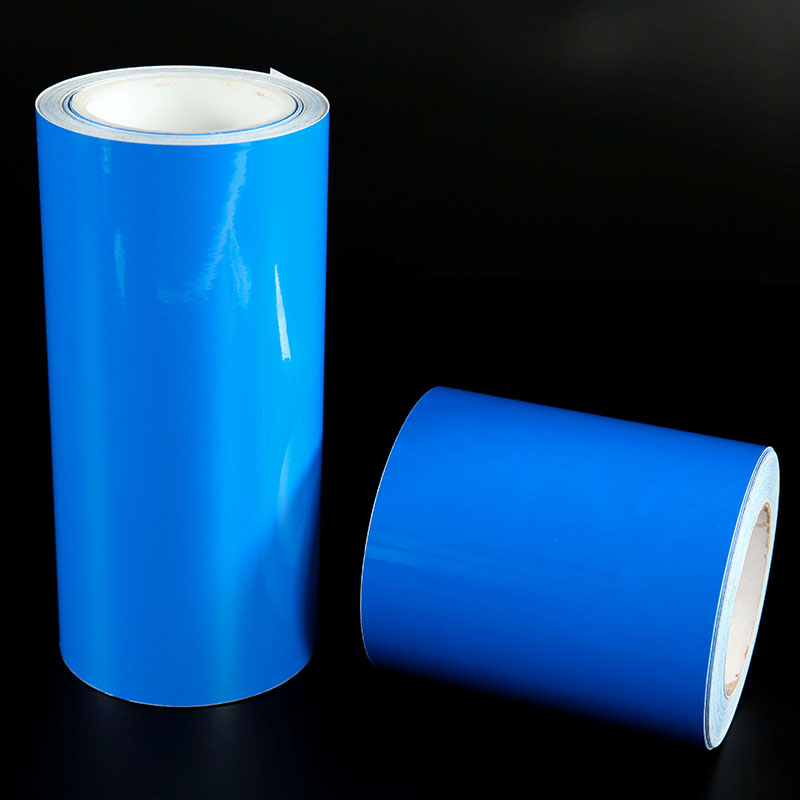

Lithium Battery Termination Tape Fire-resistant Insulation PET Power Battery Blue Single-sided Tape

The battery cell blue film series is mainly made of double-layer PET film as the substrate, coated with high adhesion acrylic
pressure-sensitive adhesive, and produced in 10,000-level dust-free It has excellent appearance, suitable for anti-puncture,
anti-warpage product bonding, protection, with good adhesive and insulation properties, single-layer and double-layer compounding,
can be customized according to needs
Availability:
Quantity:
Inquire Add to Basket

  • YUFFEN

Color
Blue, coiled material

Features
High temperature resistance, insulation, acid and alkali solvent resistance, flame retardant
Product Usage
Used for all kinds of aluminum shells, steel shells, soft packs, polymer single cells or battery packs
Product Specifications
Specifications and dimensions can be customized as required
Product name
Power battery blue single-sided tape

Adhesive
Acrylic

Material
PET

Usage:

It is composed of PET substrate coated with acrylic adhesive layer, and plays the role of appearance protection and insulation in pack assembly。


Features:

1.Customizable width

2.Withstand voltage leakage current< 3mA, 5000DC

3.Insulation resistance≥ 200MΩ, 10000DC, 60s

4.Flame retardant grade: UL94-HB


Product characteristics

It has good adhesion to all kinds of battery components, and the glue adopts special acrylic adhesive, which does not containmwater and meets ROHS requirements; The unwinding force is moderate and suitable for different process requirements. Flame retardant grade VTM-0 (UL94), high insulation performance, product safety and stability.

Product application
It is specially used for power battery cell film, which is used to cover the surface of the battery cell and play a role in
insulation protection. It is also used for PACK of various aluminum shell and steel shell batteries, and can also be used for the strapping of battery packs.
