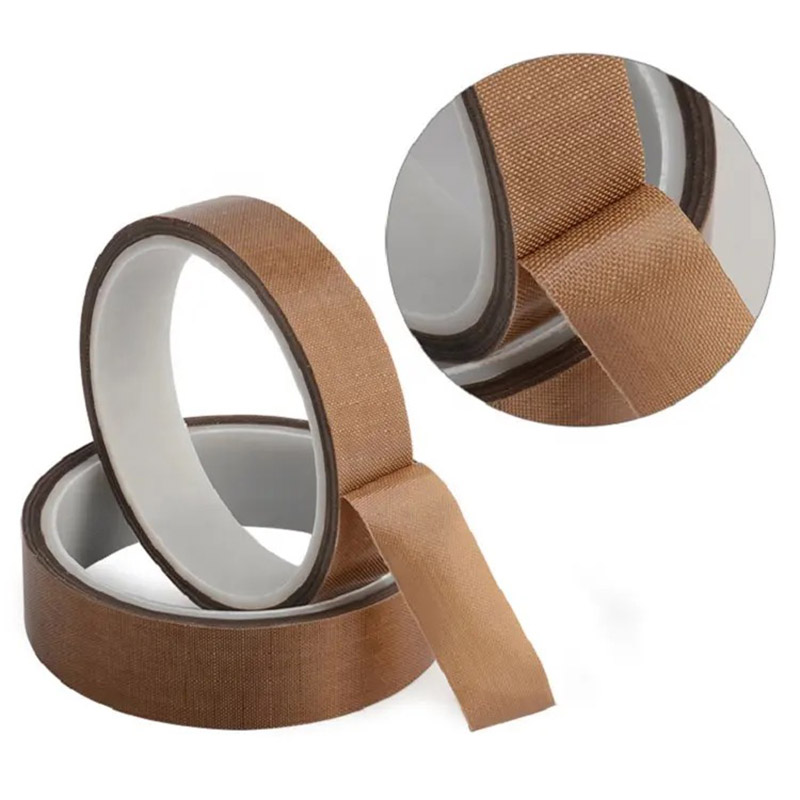

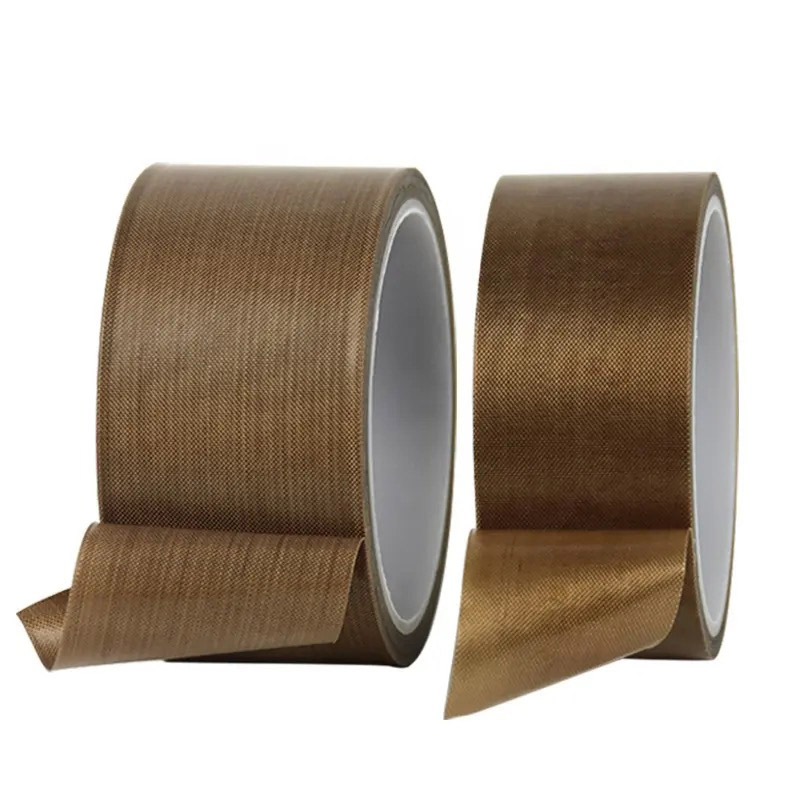

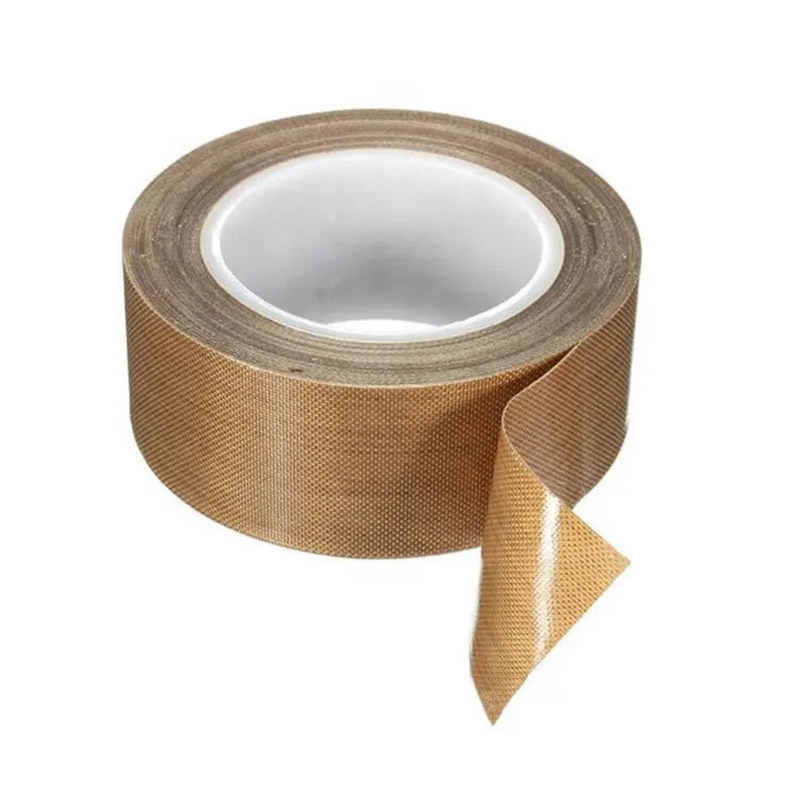

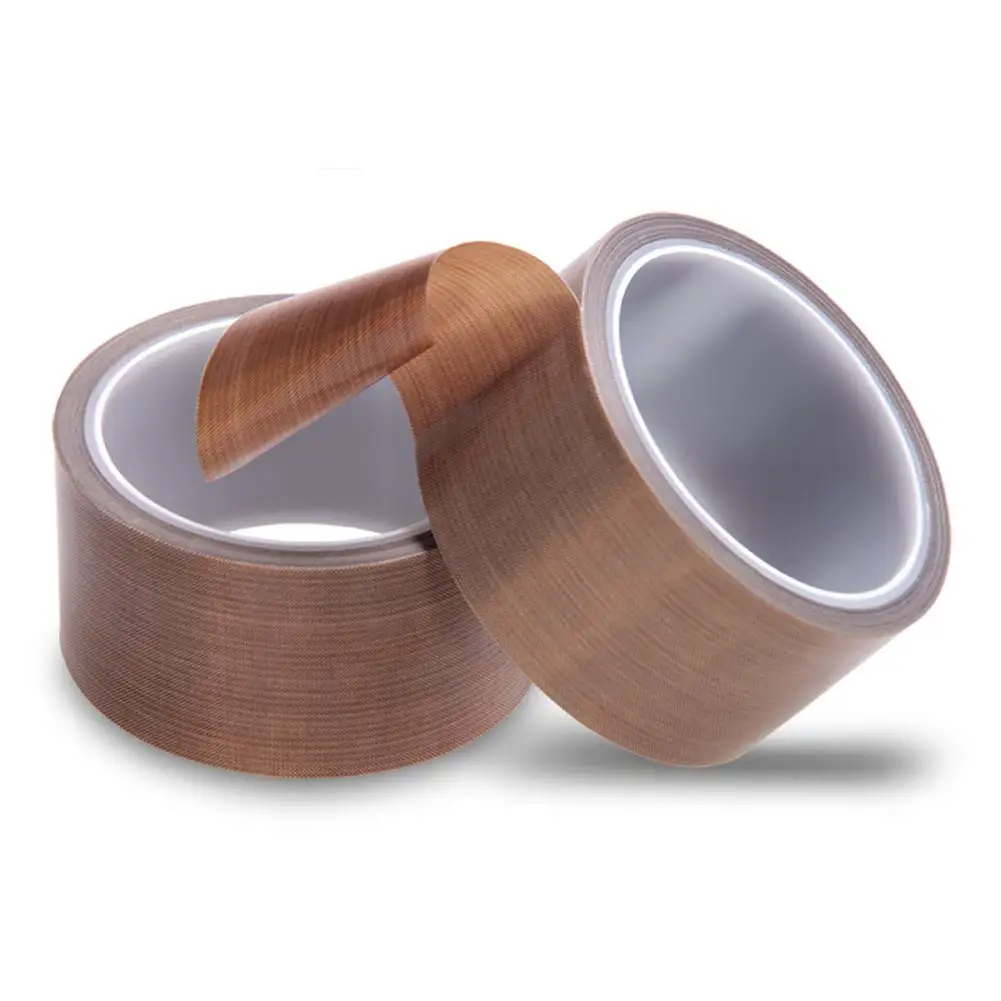

PTFE Fiberglass Adhesive Tape Single-Sided Thermally Insulated Self-Adhesive PTFE High Temperature Tape

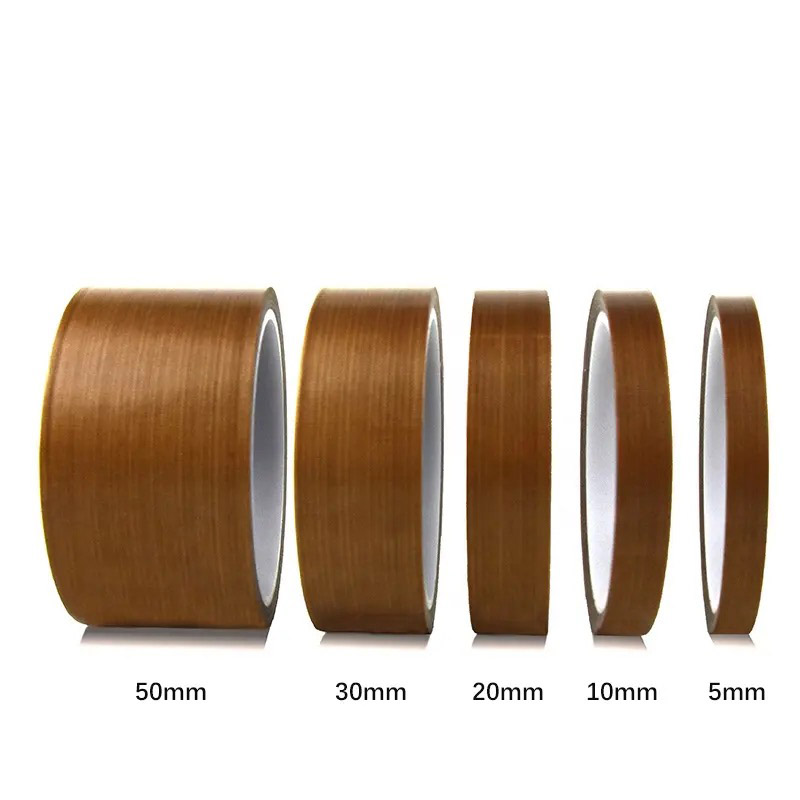

PTFE high-temperature resistant tape10MM 20MM 30MM 40MM 50MM 100MM single side adhesive anti scalding sealing cloth tape
Availability:
Quantity:
  • YUFFEN

* 【Material】PTFE tape with self-adhesive back. Width: 50 mm; optional length: 10 m.
* 【High quality】Our PTFE tape is pressure-resistant, corrosion-resistant, abrasion-resistant, high-temperature resistant, smooth surface, low-friction. High temperature resistance from -196 ° C to 300° C.
* 【Widely used】Ideal for a variety of home and commercial projects such as high speed sealing machine, food packaging, hot melt machine, 3D printing, high temperature powder coating, etching etc.
* 【Easy to use】Simply pull the tape off the roll and place it in the right place. Self-adhesive Teflon tape is easy to apply and remove without leaving any residue.
* 【Make sure the equipment runs smoothly】Pressure-sensitive silicone adhesive tapes offer excellent drainage properties and non-stick coated surfaces, replace deteriorated or burned-out Teflon tape / PTFE tape so that machines and equipment can run smoothly and efficiently.

Heat Sealing Resistance Silicone Adhesive PTFE Tape
Material:
PTFE
Color:
Brown / Black and White Customized
Size:

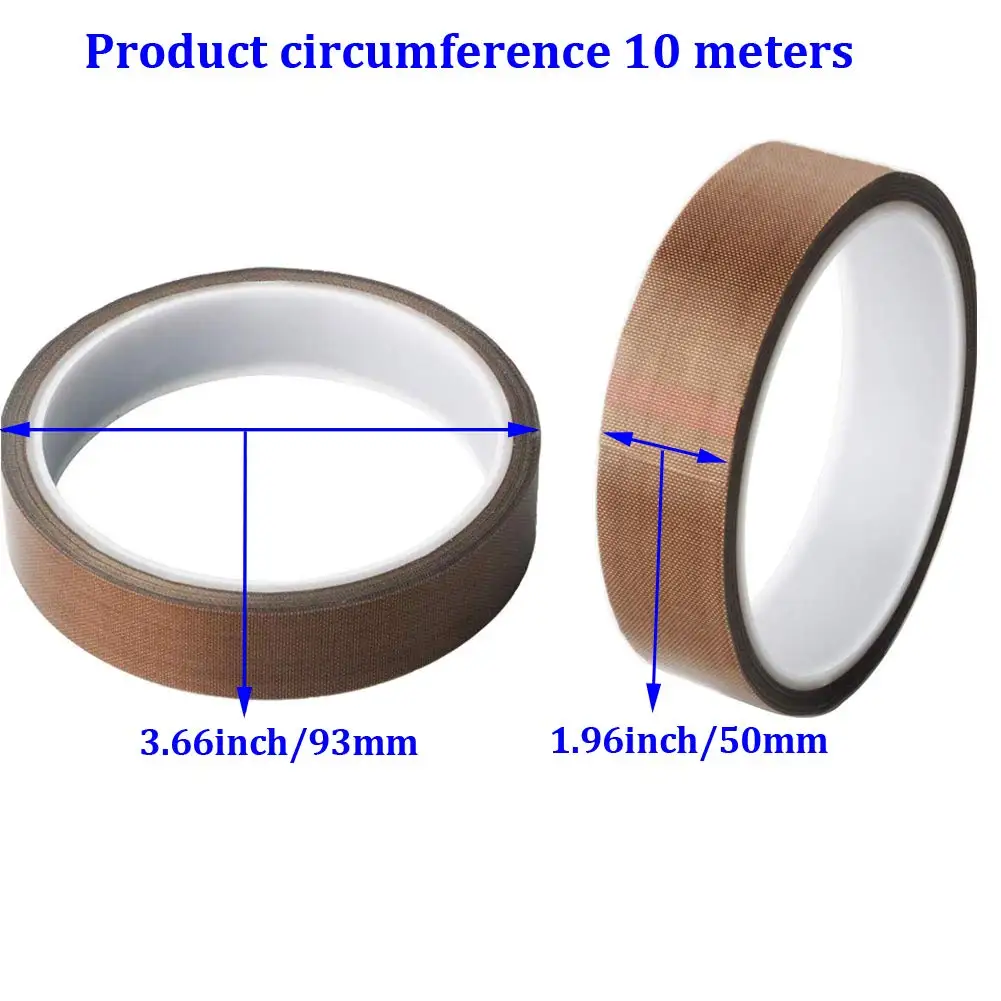

50mm(W)x10m(L)x0.13mm(T)or Customized Sizes
PTFE Tape(We can make different sizes)
Main performance characteristics
1, for low temperature -196 degrees, high temperature between 300 degrees, has weatherability, anti-aging. After practical application, for example, under the condition of high temperature of 250 ℃, the strength will not be reduced and the weight will not be reduced after continuous storage for 200 days; When placed at 350 ℃ for 120 hours, the weight is only reduced by about 0.6%; It can maintain the original softness at - 180 ℃ ultra-low temperature.
2. Non adhesion: the surface is smooth and not easy to adhere to any substance. Easy to clean all kinds of oil stains, stains or other attachments attached to its surface; Almost all adhesive substances such as paste, resin and coating can be simply removed;
3. Resistant to chemical corrosion, strong acid, alkali, aqua regia and various organic solvents.
4. Drug resistance and non toxicity. It can withstand almost all medicaments and articles.
5. It has high insulation performance (small dielectric constant: 2.6, tangent below 0.0025), anti ultraviolet and anti-static.

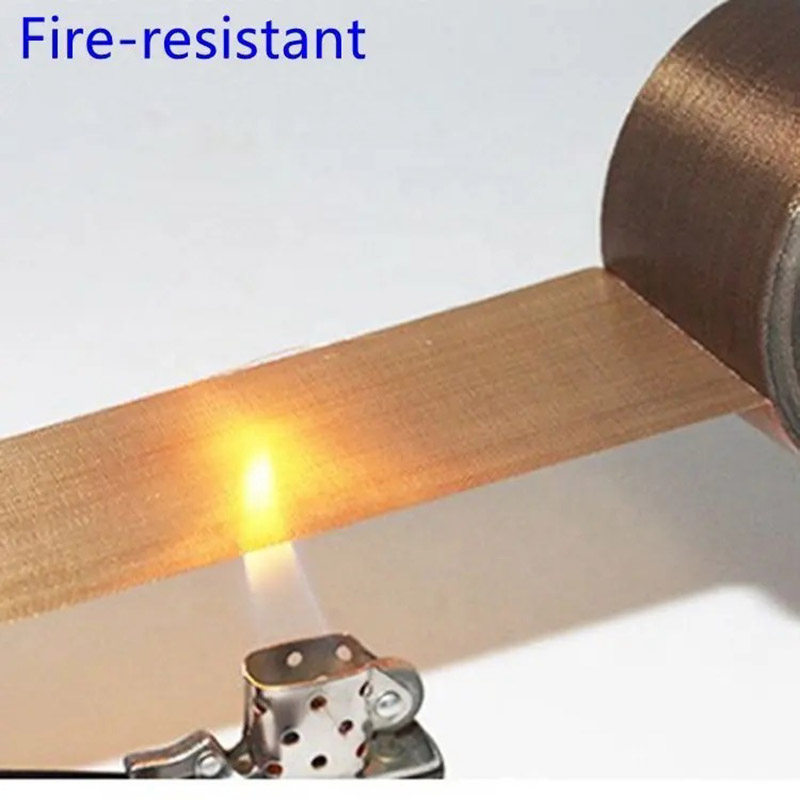

6. Fire retardant.
7. Easy to use and long service life.
Feature
1. Good heat resistance (continuous service temperature above 260 ℃) and can be used safely even on overheated heaters.
2. Good viscosity resistance, and the "slag" of the melted packaging film will not stick to the heater.
3. Excellent electrical insulation.
4. Good running stability, durability and easy maintenance.
Application
1. Used for the surface of fine pressing roller for packaging, dyeing and resin processing;
2. Roller surface of coating machine for packaging adhesives and laminations;
3. It is used to seal the friction surface of charging bucket and guide rail;
4. It is used to encapsulate non sticky parts and parts that need to maintain smoothness;

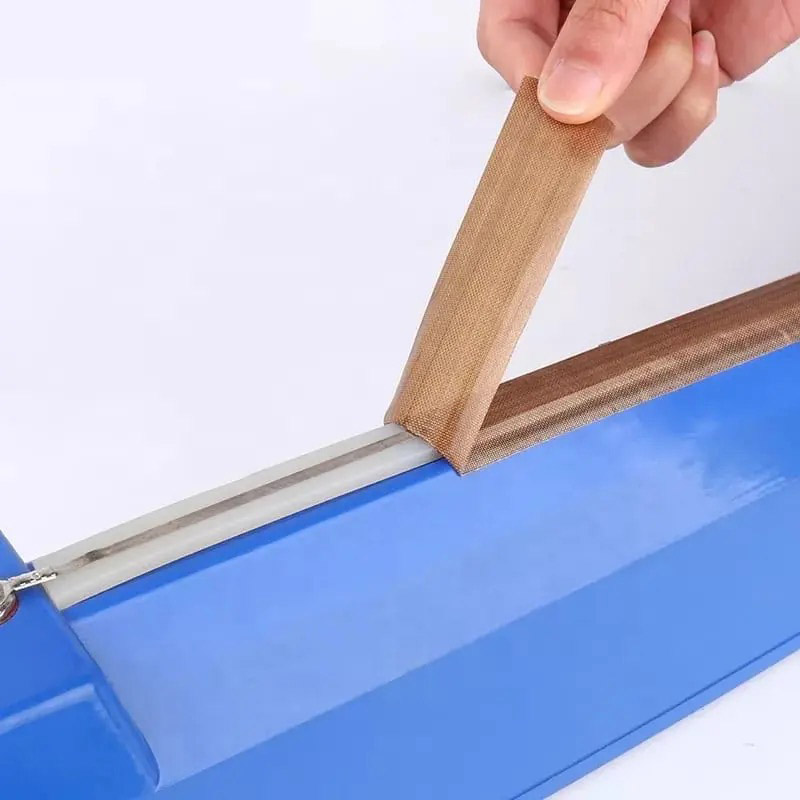

5.It is used for heat sealing of plastic film at the heat sealing and bonding parts of packaging food, dairy products and drugs.


The PTFE coated fiberglass Teflon tape is high temperature resistance, wear-resistant, corrosion-resistant, non-stick coated.


The maintenance worker used it to isolate the components near the thermal chip when working BGA, and it works great!


Fiberglass tape performs well at continuous temperatures. Resistant to tears, cuts, abrasion and wear.


PTFE self-adhesive glass fabric has good mechanical strength and extremely high resistance.
