YUFFEN

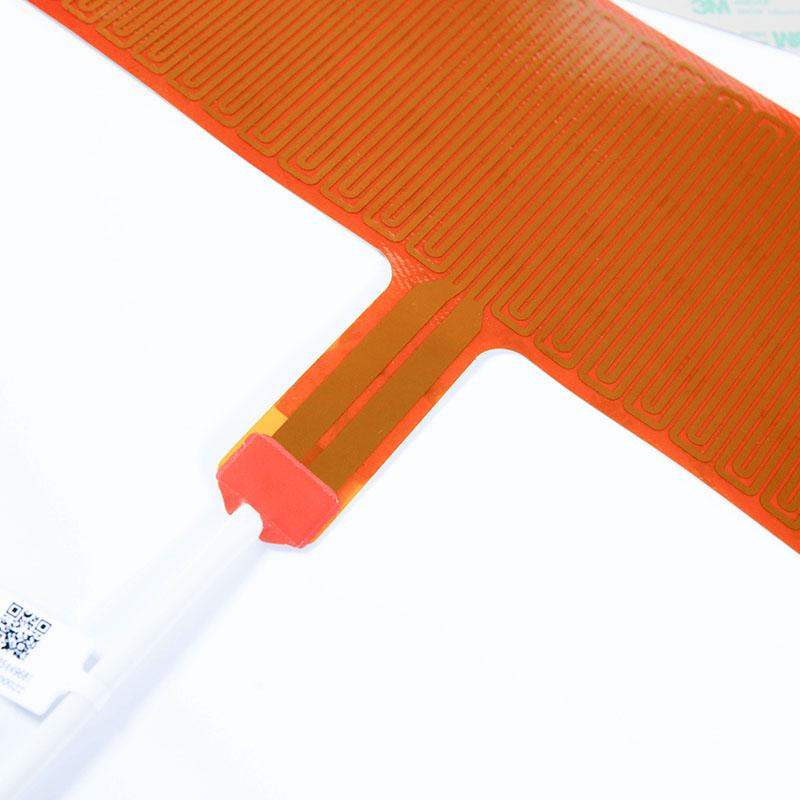

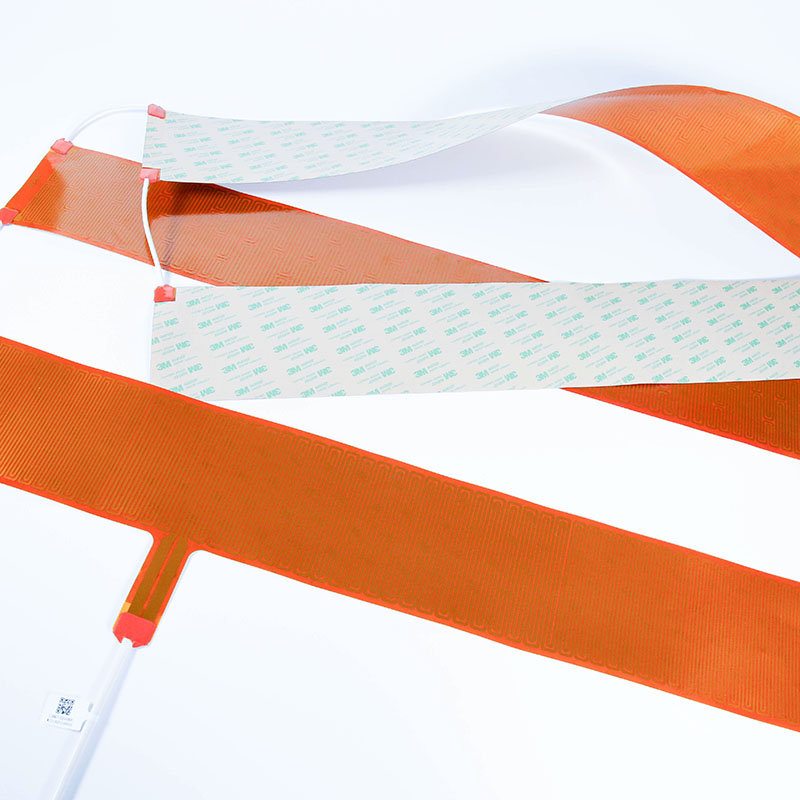

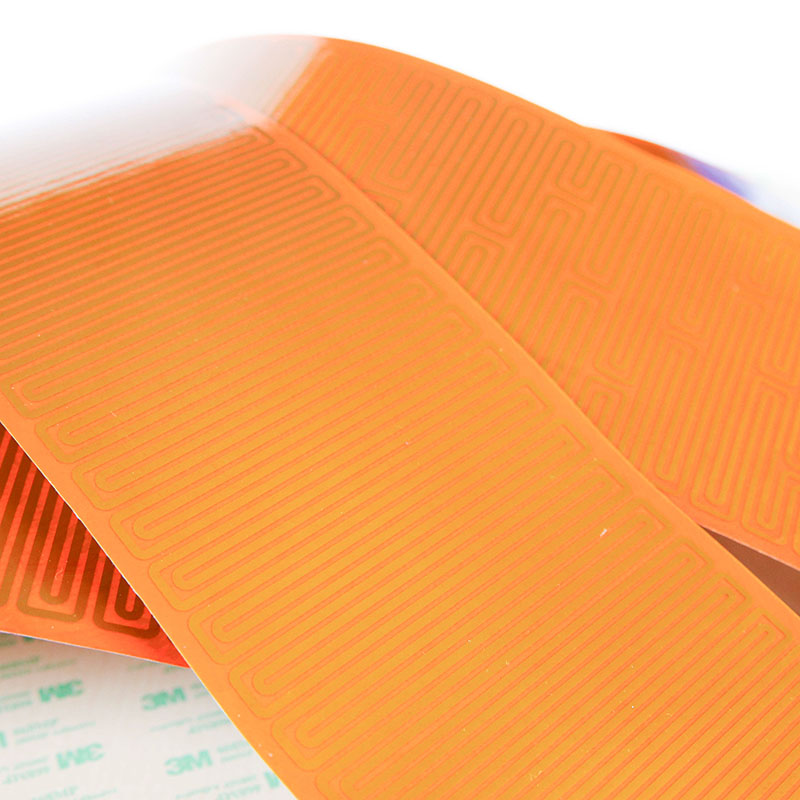

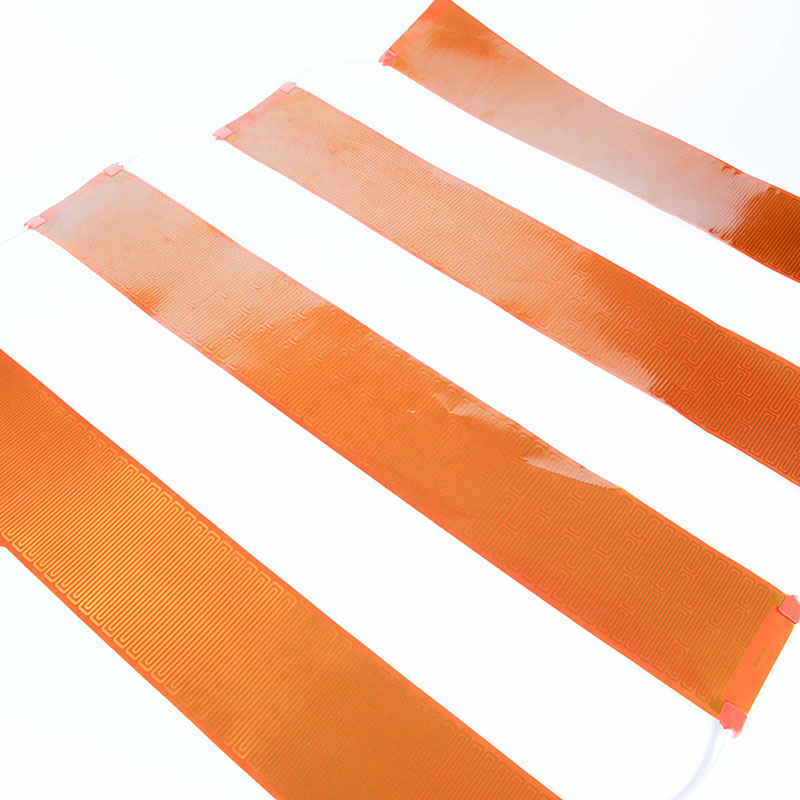

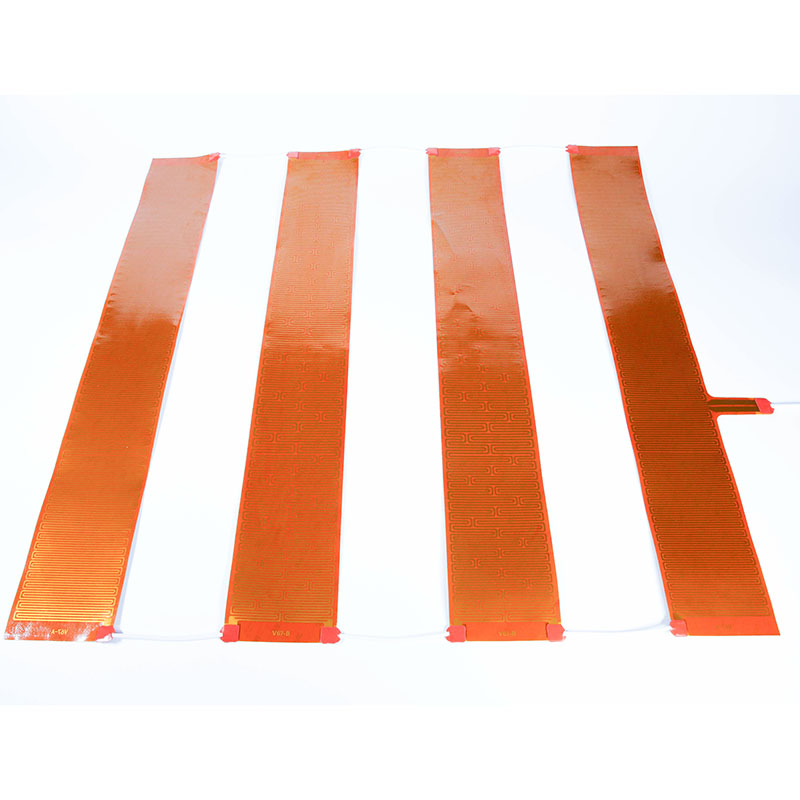

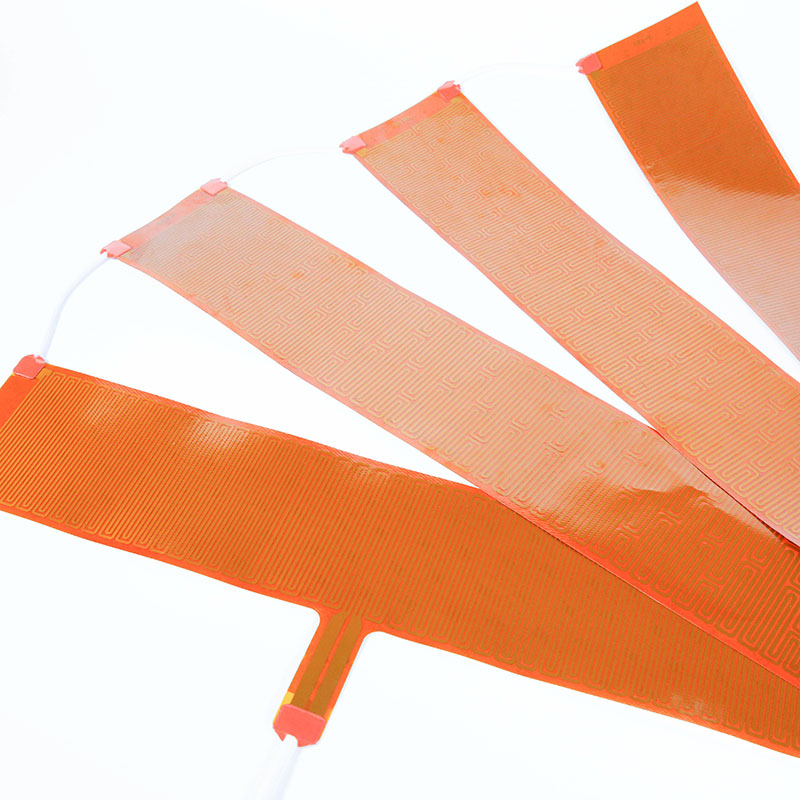

Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.
| Heatsink Assemblies: | Hooks,lacing eyelets Or Temperature control(Thermostat) | ||
| Insulation: | UDC500V>=200M ohm | ||
| Mounting: | PSA or mechanical | ||
| Plug: | Chinese, British, Ametican, European and so on | ||
| Voltage: | 12-480v (other voltages available on request) | ||
| Power density range: | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) | ||

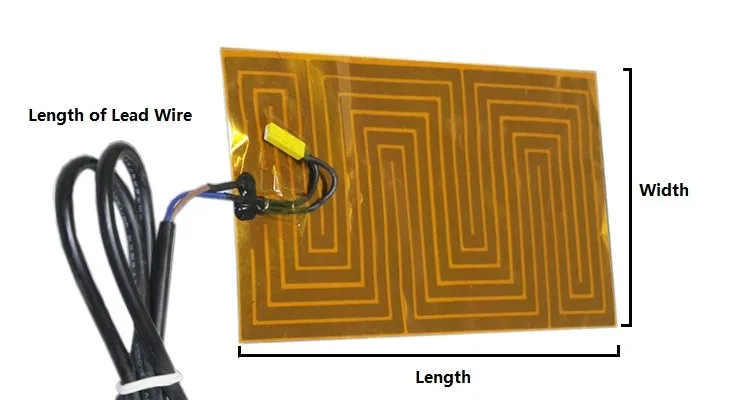

| Width range: | 10mm~500mm(0.39"~19.68") | ||
| Length range: | 10mm~1800mm(0.39"~70.86") | ||
| Thickness: | 0.13-0.4mm | ||
| Operating temperature range: | -60°C(-76°F)~220°C(428°F) | ||
| Resistance tolerance: | ±7.5% or ±5% | ||
High quality Graphene carbon crystal fiber electric heating far infrared heated pad fabric and film sheet is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters.It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -60 degree celsius to 250 degree Celsius.
Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.
| Heatsink Assemblies: | Hooks,lacing eyelets Or Temperature control(Thermostat) | ||
| Insulation: | UDC500V>=200M ohm | ||
| Mounting: | PSA or mechanical | ||
| Plug: | Chinese, British, Ametican, European and so on | ||
| Voltage: | 12-480v (other voltages available on request) | ||
| Power density range: | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) | ||
| Width range: | 10mm~500mm(0.39"~19.68") | ||
| Length range: | 10mm~1800mm(0.39"~70.86") | ||
| Thickness: | 0.13-0.4mm | ||
| Operating temperature range: | -60°C(-76°F)~220°C(428°F) | ||
| Resistance tolerance: | ±7.5% or ±5% | ||
High quality Graphene carbon crystal fiber electric heating far infrared heated pad fabric and film sheet is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters.It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -60 degree celsius to 250 degree Celsius.
