Pressboard High-Quality Insulation Cable Kraft Paper Insulating Paper for transformer

The series is widly used in Automobile Cell, Power Module, Cylindrical Cell, Power Tools, Security Market. We can offer precise slitting service, die cutting service, bending service, adhesive laminating service, etc.
Availability:
Quantity:
Inquire Add to Basket

  • YUFFEN

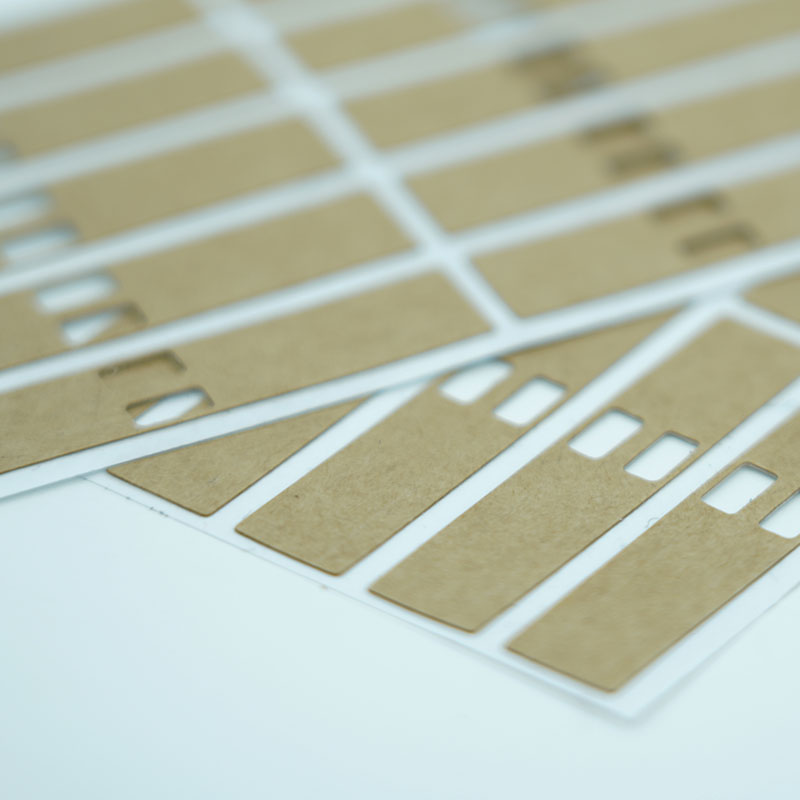

DSC05504

Usage:

1. Battery cell insulation

2. Battery protection

3. Sealing



Features:

Insulation crepe paper has very good oil-soluble properties, stable electrochemical index and high physical strength. Especially as lead parts of the insulation package, thereby improving the electrical insulation and mechanical properties of the product structure.



Applications

Power cable insulating paper is widely used in copper and aluminum wire winding, motor and capacitor winding layer insulation.


Properties
Unit
Index
Thickness

UM
130±6(Current Specifications)
Tightness

g/cm3
0.85-0.95
Tensile Strength
MD
KN/m
≥11.0

CD

≥5.20
Elongation
MD
%
≥2.0

CD

≥5.4
Endurance
(TIMES)
≥2200
Tearing Degree
MN
≥1020
Voltage Resistance
KV/MM
≥8.0
Air Permeability
UM/(PA.S)
≤0.51
Conductivity
MS/M
≤8.0
Ash Content
%
≤0.7
Moisture Content
%
6.0-8.0
Dielectric Loss(100℃)
%
≤0.50

Cable Paper is made of 100% purity sulfate insulating wood pulp. It is widely used on HV cable, signal cable, electromagnetic wire, transformer, mutual inductor, electric reactor, etc.

Specifications:
Thickness: 50um,80um,130um,150um,180um,200um,300um
Width: 625mm, 980mm, 1920mm(Ribbon is available)
Roll Diameter: 650~1000mm Weight of Each Roll: 220~350Kg
